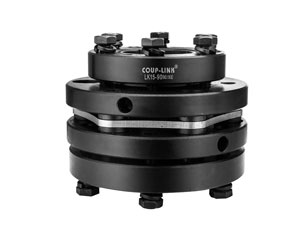

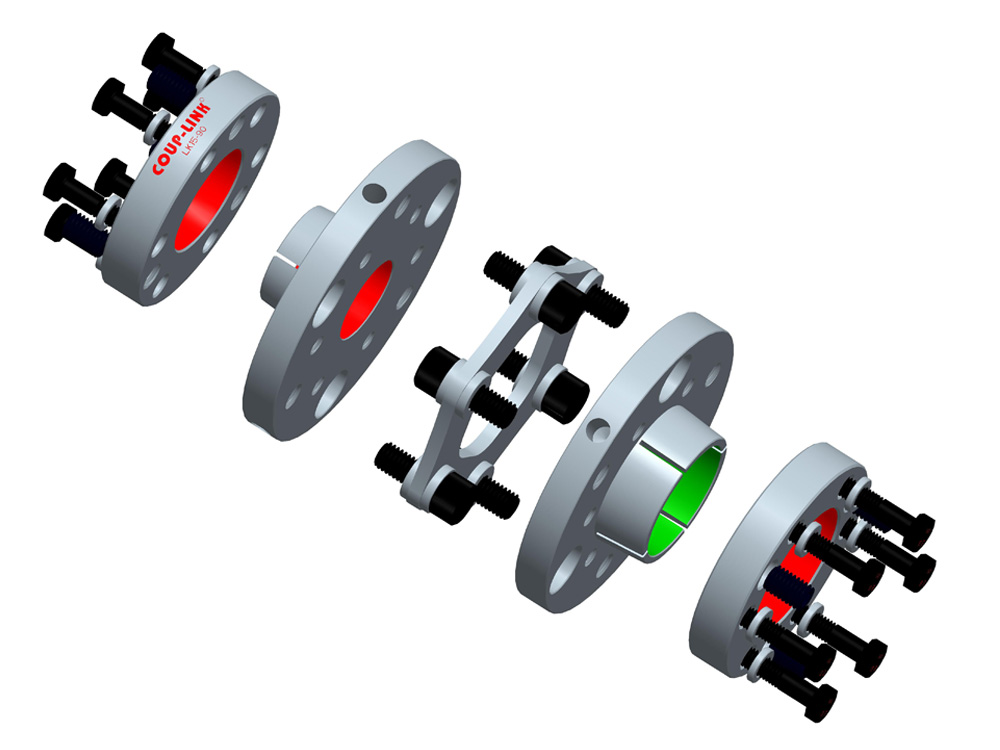

LK15-1 Single Disc Coupling - Locking Assemblies Coupling

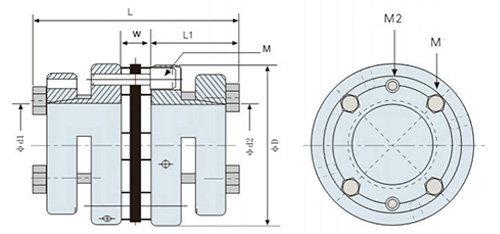

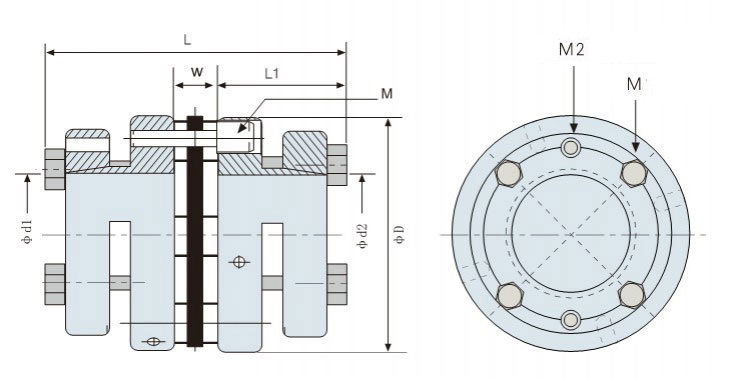

Dimensions
Note: please let us know the model and the φd1φd2 of product you need.

Model 		φd1φd2
Max. Bore Diameter 		φD L L1 W M M1 M2
LK15-56 24 56 65 29 7.0 M6 4-M6 2-M6
LK15-70 35 70 65 29 7.0 M6 4-M6 2-M6
LK15-70L 35 70 90 41.5 7.0 M6 4-M6 2-M6
LK15-80 35 80 70 31 8.0 M8 4-M6 2-M6
LK15-80L 35 80 95 43.5 8.0 M8 4-M6 2-M6
LK15-90 48 90 70 31 8.0 M8 6-M6 3-M6
LK15-90L 48 90 110 50.5 9.0 M8 6-M6 3-M6
LK15-100 60 100 70 31 8.0 M8 6-M6 3-M6
LK15-100L 60 100 124 57.0 10.0 M8 6-M6 3-M6
LK15-126 65 126 100 44.5 11 M10 6-M8 3-M6
LK15-126L 65 126 152 70.5 11 M10 6-M8 3-M6
LK15-144 75 144 118 53 12 M12 6-M8 3-M8
LK15-144L 75 144 170 79 12 M12 6-M8 3-M8
Specifications
Model Rated Torque
( N.m ) 		Max. Torque
( N.m ) 		Max.Rotational Frequency
( rpm ) 		Moment of Inertia
( Kg.m2 ) 		Static Torsional Stiffness
( N.m / rad ) 		Errors of Eccentricity
( mm ) 		Max. Angular Misalignment
( °) 		Max. Axial Misalignment
( mm ) 		Mass ( g )
LK15-56 50 100 18000 2.74×10-4 41×103 0.02 0.5 ±0.5 700
LK15-70 70 140 17000 5.82×10-4 58×103 0.02 0.5 ±0.5 950
LK15-70L 70 140 17000 7.53×10-4 67×103 0.02 0.5 ±0.5 1230
LK15-80 125 250 16000 9.60×10-4 62×103 0.02 0.5 ±0.5 1200
LK15-80L 125 250 16000 1.22×10-3 71×103 0.02 0.5 ±0.5 1520
LK15-90 180 360 14000 1.57×10-3 140×103 0.02 0.5 ±0.5 1550
LK15-90L 180 360 14000 2.14×10-3 160×103 0.02 0.5 ±0.5 2110
LK15-100 280 560 12000 2.29×10-3 160×103 0.02 0.5 ±0.5 1830
LK15-100L 280 560 12000 4.24×10-3 184×103 0.02 0.5 ±0.5 3400
LK15-126 450 900 10000 8.51×10-3 450×103 0.02 0.5 ±0.5 4290
LK15-126L 450 900 10000 9.26×10-3 517×103 0.02 0.5 ±0.5 4670
LK15-144 760 1520 8000 1.55×10-2 785×103 0.02 0.5 ±0.5 5970
LK15-144L 760 1520 8000 2.20×10-2 902×103 0.02 0.5 ±0.5 8470

For more information, please click here.
