Fixed Mount Motor Bracket

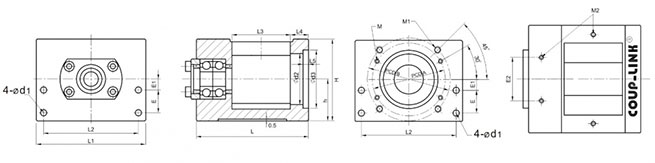

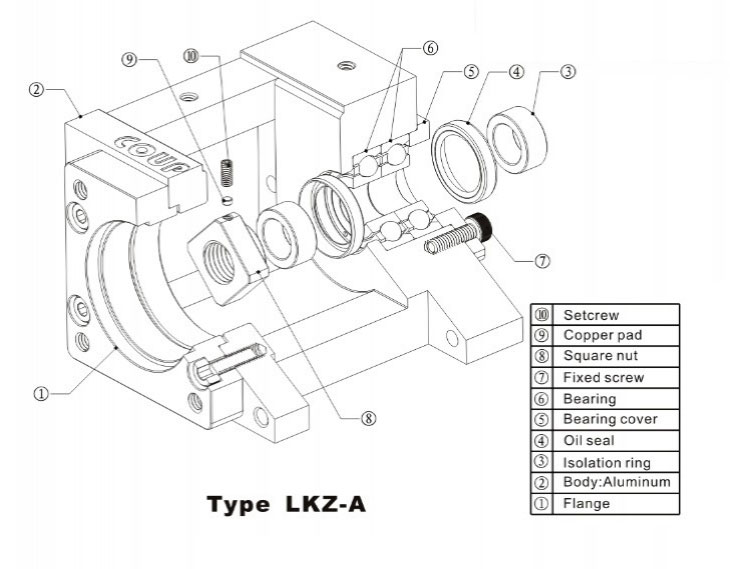

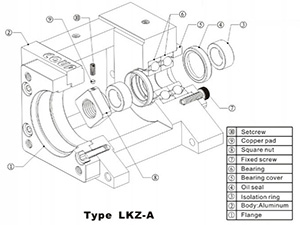

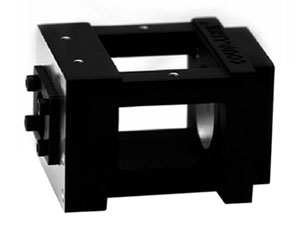

Cast aluminum fixed mount motor bracket, type A

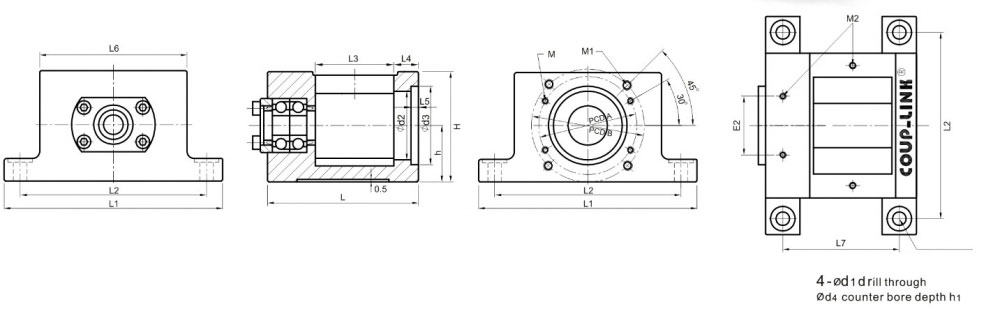

Model L L1 H L2 d1 E E1 E2 L3 L4 L5 h±0.025 d2 d3 A B M M1 M2
LKZ50A 63 50 38.5 43 3.3 10 1.36 24 35 11 2.5 16 24 27 - 33 - 4-M3 4-M3
LKZ60A 61.5 60 45 52 3.3 12.5 6 24 32 10 2.5 23 28 32 40 40 4-M3 4-M4 4-M4
LKZ86A 88 86 63 75 4.4 18.5 8 74 51.5 14 3.5 31 46 50 60 70 4-M4 4-M5 4-M4
LKZ100A 94 100 72 88 5.5 19 6 64 45.5 22 - 31 50 - - 70 - 4-M5 4-M4

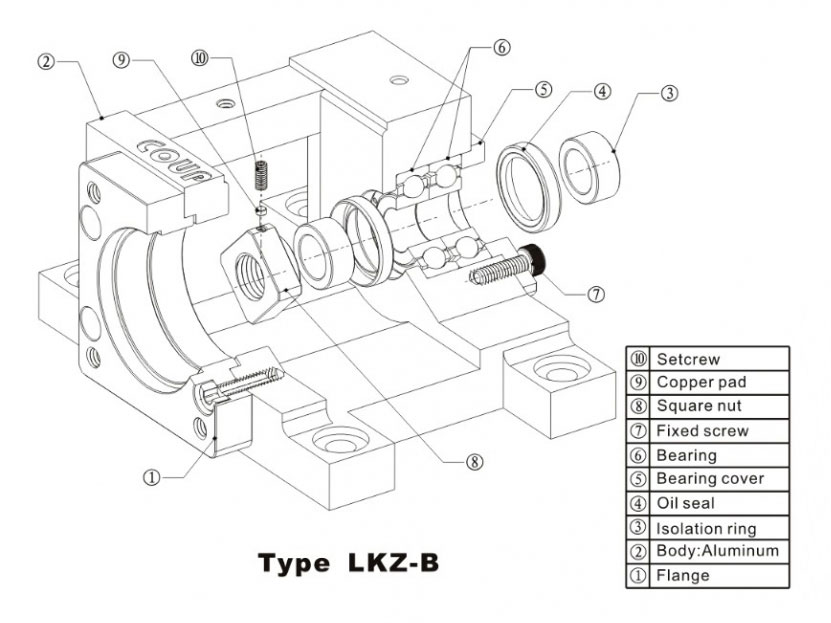

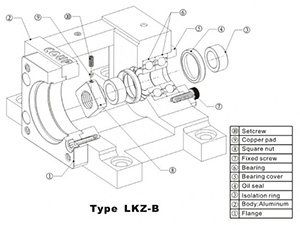

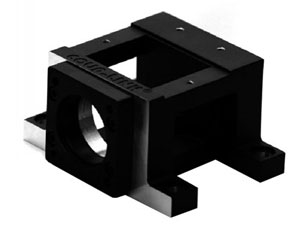

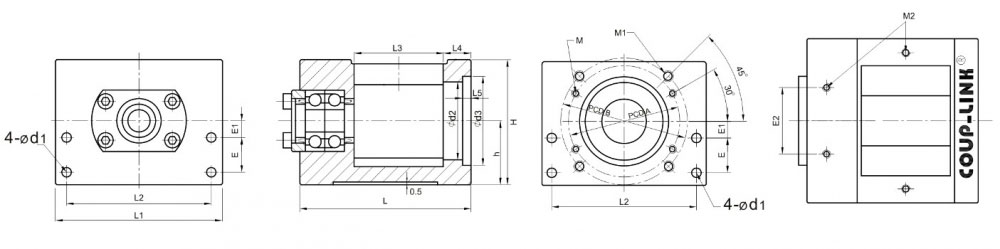

Cast aluminum fixed mount motor bracket, type B
Model L L1 H L2 L3 L4 L5 L6 L7 h±0.025 d1 d2 d3 d4 h1 A B M M1 M2
LKZ50B 63 75 38.5 62 35 11 2.5 50 51 16 4.4 24 27 8 1.5 - 33 - 4-M3 4-M3
LKZ60B 61.5 89 45 76 32 10 2.5 60 47.5 23 5.4 28 32 10 1.5 40 40 4-M3 4-M4 4-M4
LKZ86B 88 113 63 100 51.5 14 3.5 86 74 31 5.4 46 50 9 1.5 60 70 4-M4 4-M5 4-M4
LKZ100B 94 107 72 92 45.5 22 - 75 78 31 6.5 50 - 11 2 - 70 - 4-M5 4-M4

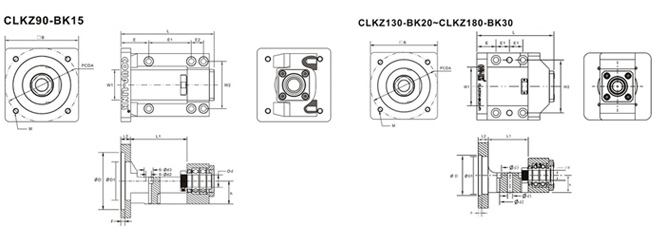

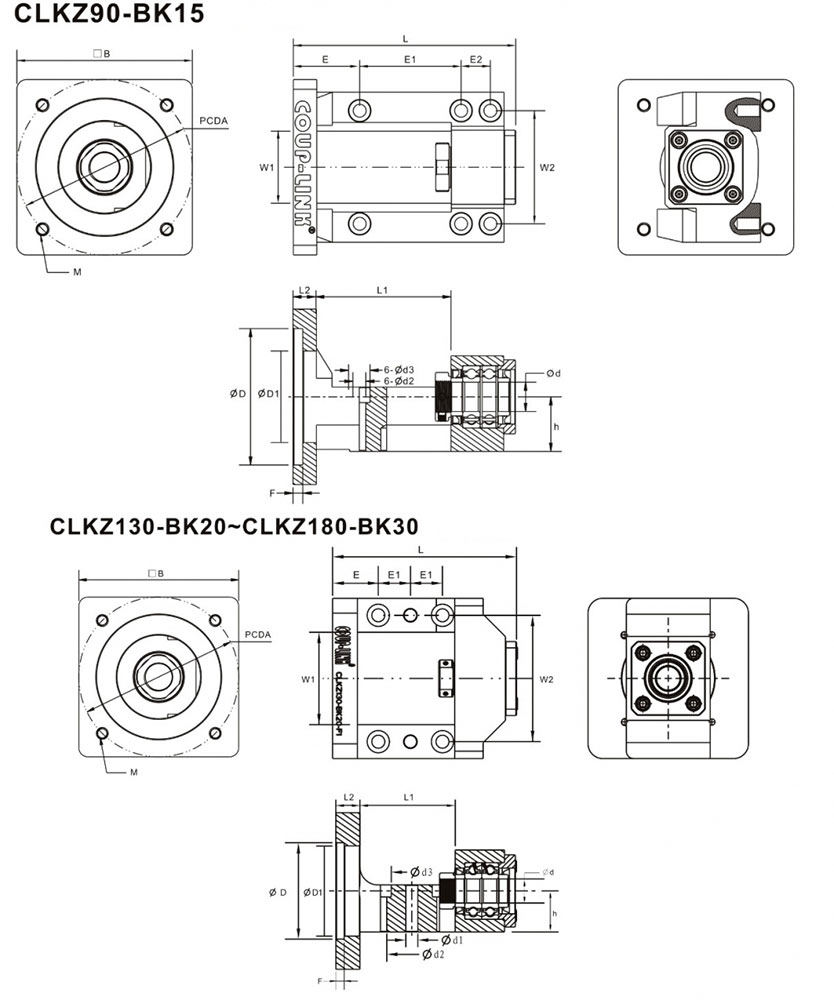

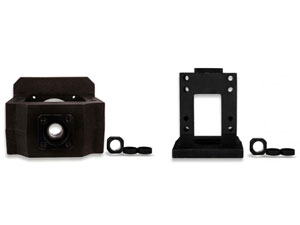

Cast iron fixed mount motor bracket

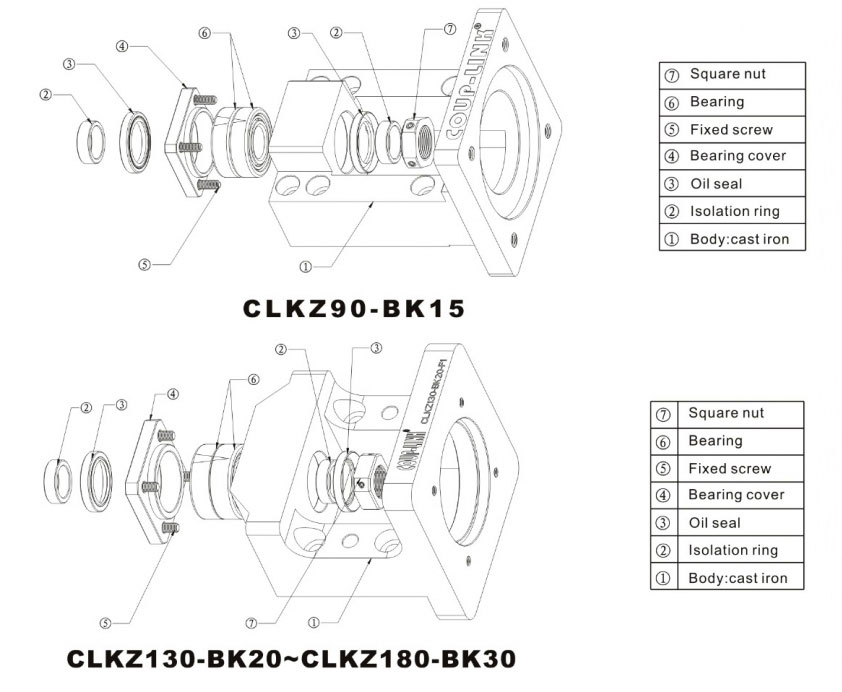

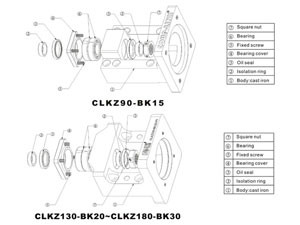

Model d B D D1 PCDA F M L L1 L2 E E1 E2 h±0.025 W1 W2 d1 d2 d3
CLKZ90-BK15-F1 15 90 70 47 90 5 4-M5 114 69 12 34 52 15 28 43 58 - 6.6 11
CLKZ90-BK15-F2 4-M6
CLKZ130-BK20-F1 20 130 80 75 100 7 4-M6 151 79 20 37 26 - 34 75 102.5 10 10.5 18
CLKZ130-BK20-F2 95 115 4-M6
CLKZ130-BK20-F3 95 115 4-M8
CLKZ180-BK25-F1 25 180 110 88 130 7 4-M8 180 101 25 43 35 - 48 120 150 12 13 20
CLKZ180-BK25-F2 145 4-M8
CLKZ130-BK30-F1 30 180 114.3 102 200 8 4-M12 224 135 30 65 37.5 - 51 120 150 12 13 20
