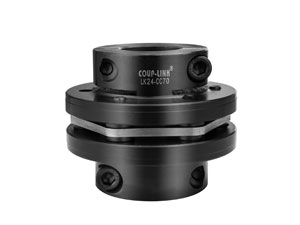

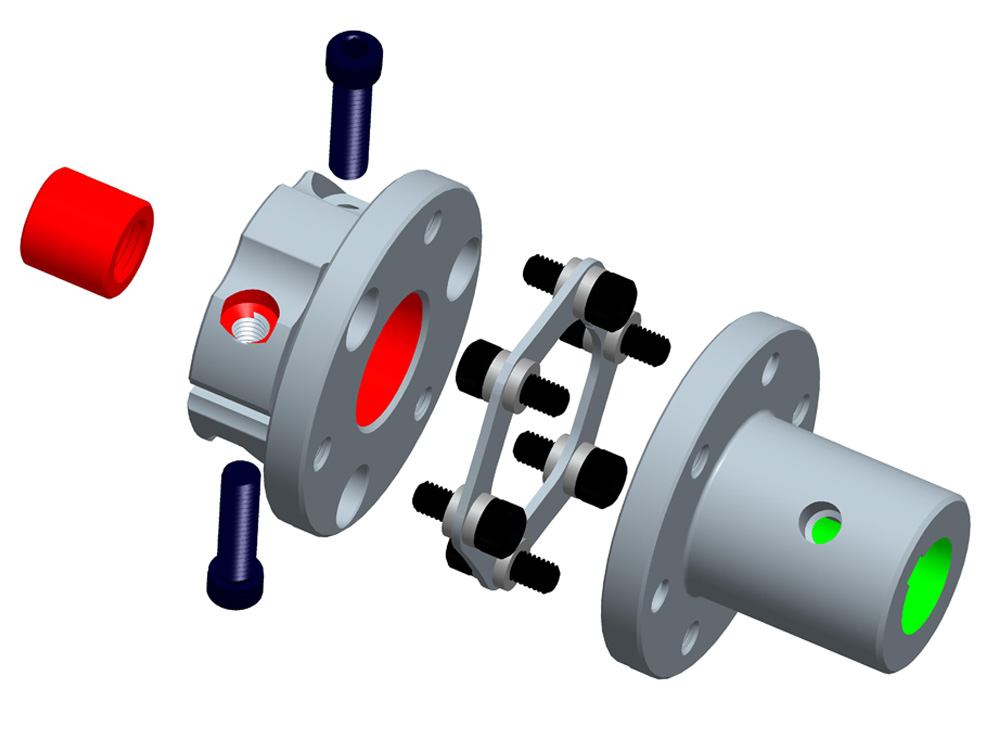

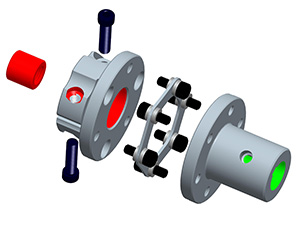

LK24-3 Flexible Coupling

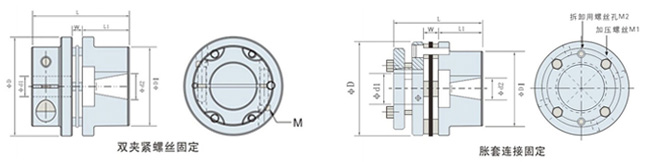

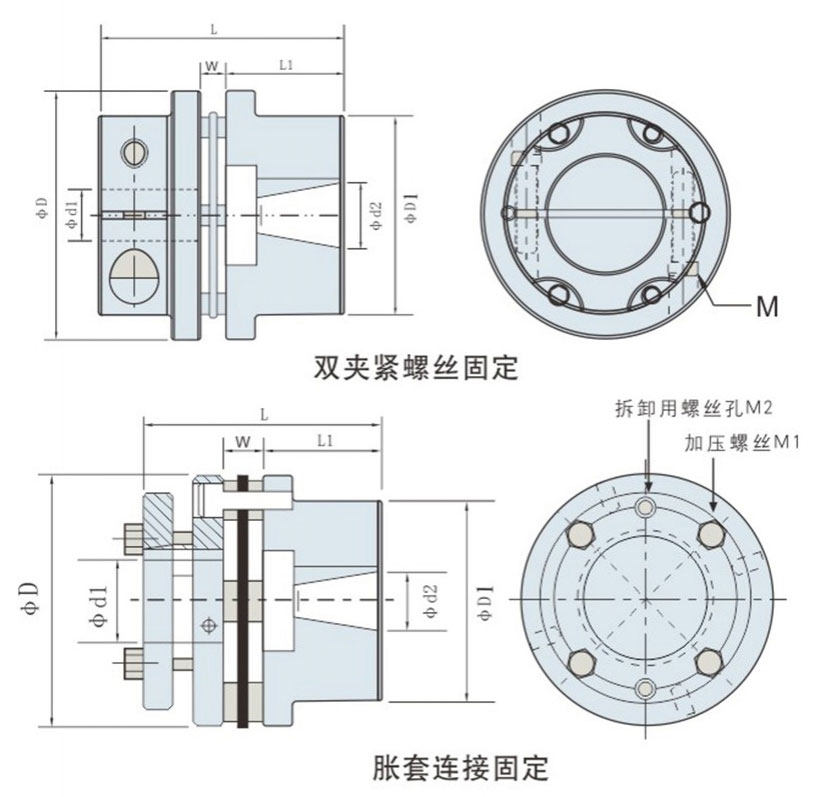

Dimensions
Note: please let us know the model and the φd1φd2 of product you need.
Model φd1φd2
Max. Bore Diameter
(mm) 		Φd2 φD Φd1 L W L1 M M1 M2 Tightening Torque
( N.M )
LK24-CC60-11T ≤22 Φ11 1/10taper 60 44 53 6 23 M6 - - 8
22-28 48
LK24-CC60-16T ≤22 Φ16 1/10taper 70 44 71 6 41 M6 - - 8
22-28 48
LK24-60-11T ≤22 Φ11 1/10taper 80 44 60 6 23 - 4-M8 2-M8 8
22-28 48
LK24-60-16T ≤22 Φ16 1/10taper 90 44 78 6 41 - 4-M8 2-M8 8
22-28 48
Specifications
Model Rated Torque
( N.m ) 		Max.Rotational Frequency
( rpm ) 		Moment of Inertia
( Kg.m2 ) 		Static Torsional Stiffness
( N.m / rad ) 		Errors of Eccentricity
( mm ) 		Max. Angular Misalignment
( °) 		Max. Axial Misalignment
( mm ) 		Mass ( g )
LK24-CC60-11T 60 14000 2.2×10-4 53000 0.02 1 ±0.3 660
LK24-CC60-16T 100 14000 2.1×10-4 53000 0.02 1 ±0.3 690
LK24-60-11T 200 13000 2.2×10-4 53000 0.02 1 ±0.3 860
LK24-60-16T 300 12000 2.1×10-4 53000 0.02 1 ±0.3 950

For more information, please click here.
