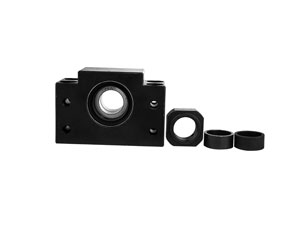

Ball Screw Support Unit, Type LBK Fixed Side

Dimensions
Model d L L1 L2 L3 B H b h1±0.02 B1 H1 E P C1 C2 d1 d2 d3 h M Mass (kg)
LBK10 10 25 5 29 5 60 39 30 22 34 32.5 15 46 13 6 6.6 10.8 5.5 5 M3 0.39
LBK12 12 25 5 29 5 60 43 30 25 35 32.5 18 46 13 6 6.6 10.8 5.5 1.5 M3 0.41
LBK15 15 27 6 32 6 70 48 35 28 40 38 18 54 15 6 6.6 11 5.5 6.5 M3 0.57
LBK17 17 35 9 44 7 86 64 43 39 50 55 28 68 19 8 9 14 6.6 8.5 M4 1.27
LBK20 20 35 8 43 8 88 60 44 34 52 50 22 70 19 8 9 14 6.6 8.5 M4 1.19
LBK25 25 42 12 54 9 106 80 53 48 64 70 33 85 22 10 11 17.5 9 11 M5 2.3
LBK30 30 45 14 61 9 128 89 64 51 76 78 33 102 23 11 14 20 11 13 M6 3.32
LBK35 35 50 14 67 12 140 96 70 52 88 79 35 114 26 12 14 20 11 13 M8 4.33
LBK40 40 61 18 76 15 160 110 80 60 100 90 37 130 33 14 18 26 14 17.5 M8 6.5
Other Fixed-Side Support Units
  • Type LEK Fixed SideType LEK Fixed Side
  • Type LFK Fixed SideType LFK Fixed Side
  • Type LWBK Fixed SideType LWBK Fixed Side
  • Type LWBK Heavy DutyType LWBK Heavy Duty
