LK9-2 Double Disc Coupling - Locking Assemblies Coupling

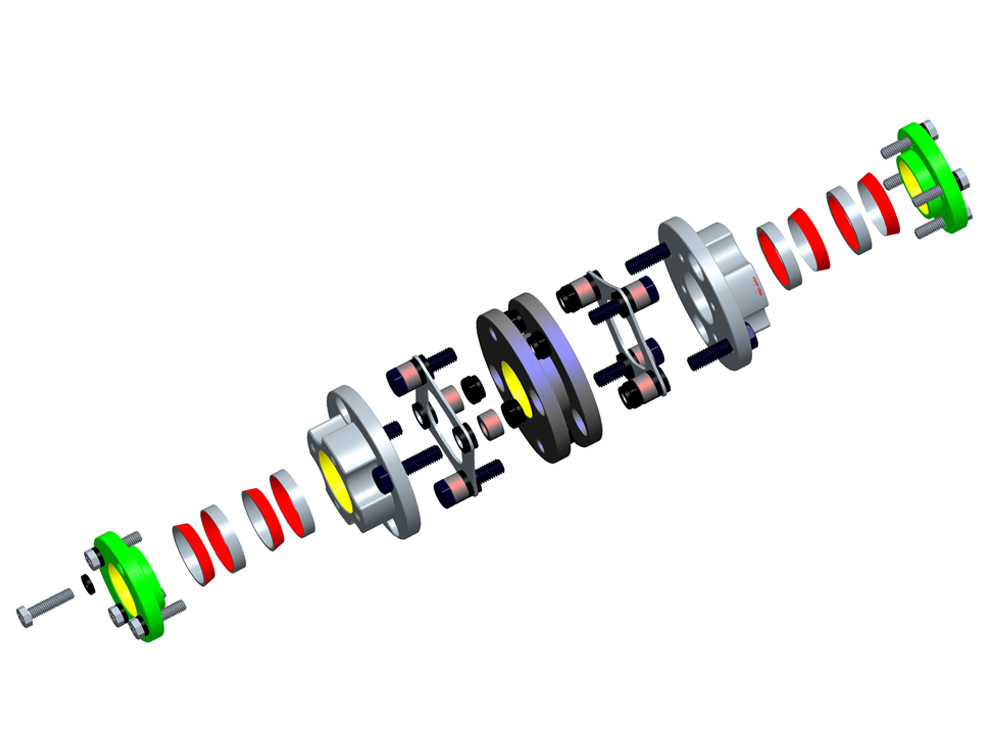

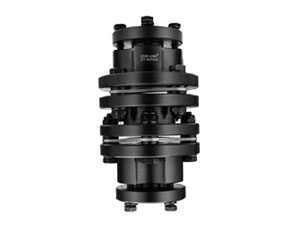

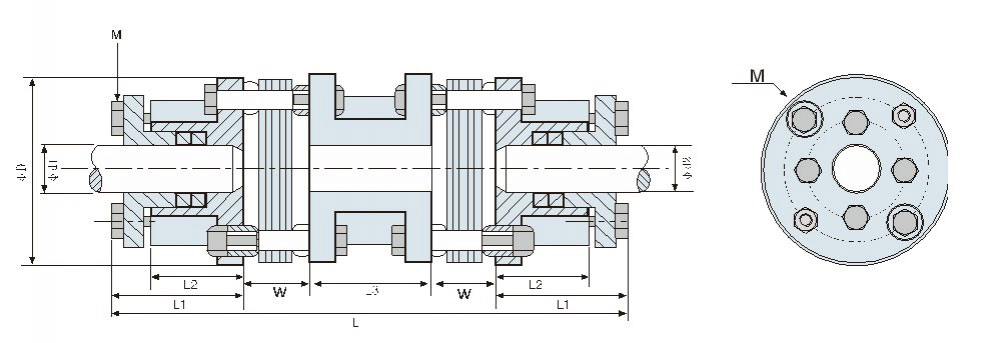

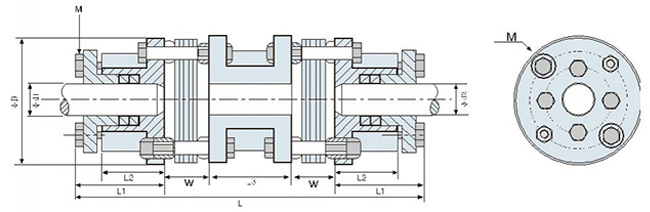

Dimensions
Note: please let us know the model and the φd1φd2 of product you need.
Model φd1φd2
Max. Bore Diameter 		φD L W L1 L2 L3 M Wrench Torque
( N.M )
LK9-68-WP 22 68 121 7 41.5 26 24 M5(4) 4.0
LK9-82-WP 30 82 128 7 44 26 26 M6(4) 7.0
LK9-94-WP 35 94 148 8 51 29 30 M6(4) 7.0
LK9-104-WP 40 104 164 10 57 34 30 M6(4) 7.0
LK9-126-WP 50 126 201 11 70.5 42 38 M8(6) 15.0
LK9-144-WP 58 144 228 12 79 48 46 M8(6) 15.0
Specifications
Model Rated Torque
( N.m ) 		Max. Torque
( N.m ) 		Max.Rotational Frequency
( rpm ) 		Moment of Inertia
( Kg.m2 ) 		Static Torsional Stiffness
( N.m / rad ) 		Errors of Eccentricity
( mm ) 		Max. Angular
( °) 		Max. Axial Misalignment
( mm ) 		Mass ( g )
LK9-68-WP 55 110 4500 0.71×10-3 15×103 0.04 2 ±1.5 1465
LK9-82-WP 80 160 4500 1.85×10-3 44×103 0.04 2 ±1.5 2116
LK9-94-WP 150 300 4500 3.62×10-3 90×103 0.04 2 ±1.5 3605
LK9-104-WP 220 440 4500 5.8×10-3 130×103 0.04 2 ±1.5 5239
LK9-126-WP 350 700 4500 13.1×10-3 220×103 0.04 2 ±1.5 9399
LK9-144-WP 500 1000 4500 26.5×10-3 380×103 0.04 2 ±1.5 13033

For more information, please click here.
