  5. LK18-2 Double Disc Coupling - Clamp Type

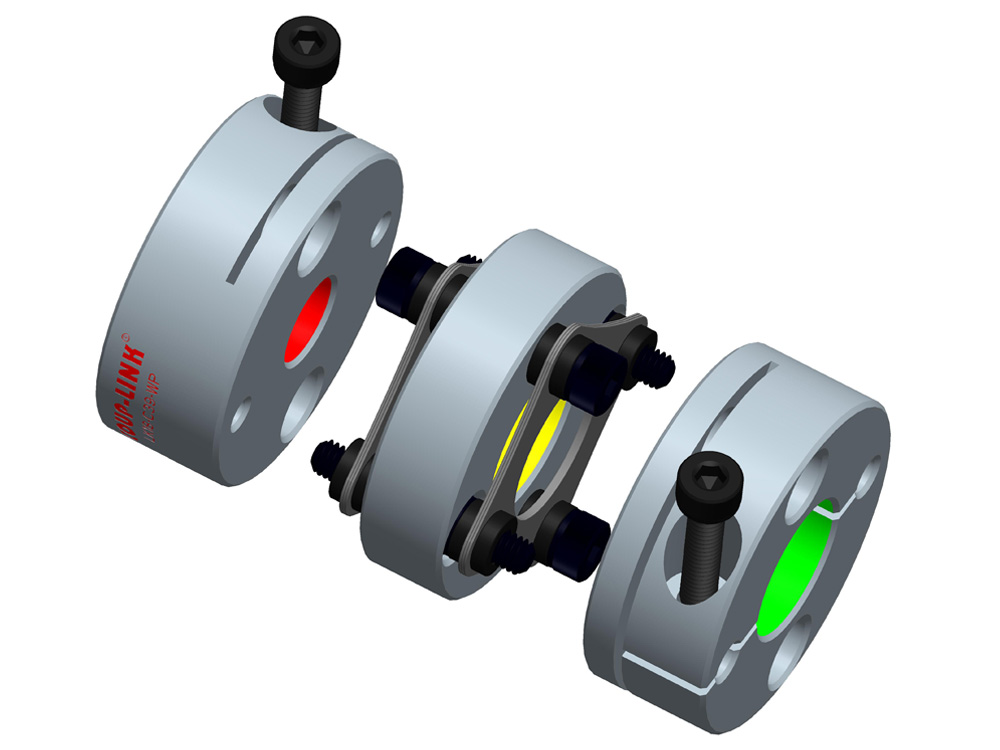

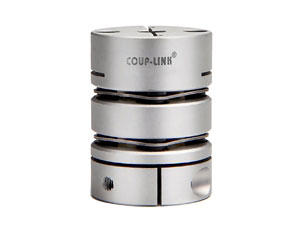

LK18-2 Double Disc Coupling - Clamp Type

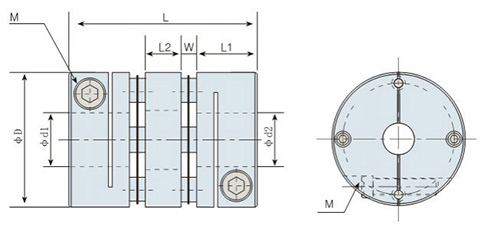

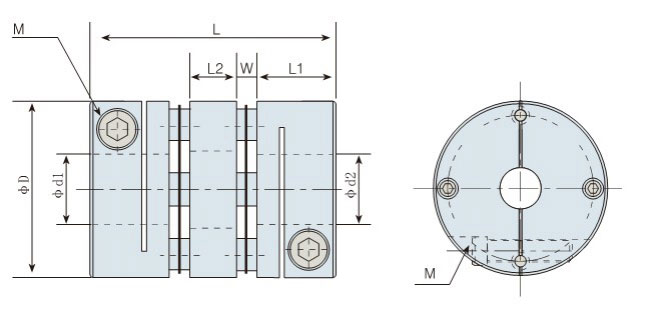

Dimensions
Note: please let us know the model and the φd1φd2 of product you need.
Model φd1φd2
Max. Bore Diameter 		φD L W L1 L2 M Wrench Torque
( N.M )
LK18-C26-WP 10 26 35 2.8 11.35 7.0 M3 1.2
LK18-C34-WP 14 34 45 3.6 14.5 8.8 M4 2.5
LK18-C39-WP 16 39 49 4.5 15.0 10.0 M4 2.5
LK18-C44-WP 19 44 50 4.8 15.0 10.4 M4 2.5
LK18-C56-WP 24 56 63 5.5 20.0 12.0 M5 5
LK18-C68-WP 35 68 74 6.0 24.0 14.0 M6 8
LK18-C82-WP 40 82 98 8.0 30.0 22.0 M8 20
LK18-C94-WP 40 94 98 8.5 30.0 21.0 M10 40
LK18-C104-WP 45 104 102 10.0 30.0 22.0 M10 40
Specifications
Model Rated Torque
( N.m ) 		Max.Torque
( N.m ) 		Max.Rotational Frequency
( rpm ) 		Moment of Inertia
( Kg.m2 ) 		Static Torsional Stiffness
( N.m / rad ) 		Errors of Eccentricity
( mm ) 		Max. Angular Misalignment
( °) 		Max. Axial Misalignment
( mm ) 		Mass ( g )
LK18-C26-WP 1.4 2.8 10000 3.13×10-6 950 0.15 1.5 ±0.4 37.1
LK18-C34-WP 2.8 5.6 10000 1.13×10-5 1960 0.18 1.5 ±0.4 78.0
LK18-C39-WP 5.8 11.6 10000 2.21×10-5 4500 0.25 1.5 ±0.5 116.2
LK18-C44-WP 8.7 17.4 10000 3.56×10-5 5100 0.25 1.5 ±0.7 147.3
LK18-C56-WP 25 50 10000 1.18×10-4 10500 0.3 1.5 ±0.8 301.9
LK18-C68-WP 55 110 10000 2.82×10-4 18500 0.35 1.5 ±0.9 488.4
LK18-C82-WP 80 160 10000 8.29×10-4 21800 0.52 1.5 ±1.0 985.8
LK18-C94-WP 185 370 10000 1.51×10-3 84500 0.55 1.5 ±1.3 1370.1
LK18-C104-WP 255 510 10000 2.34×10-3 125500 0.55 1.5 ±1.5 1734.0

For more information, please click here.
