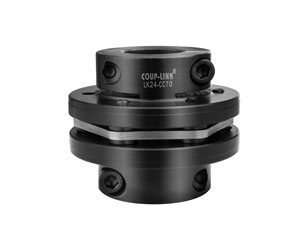

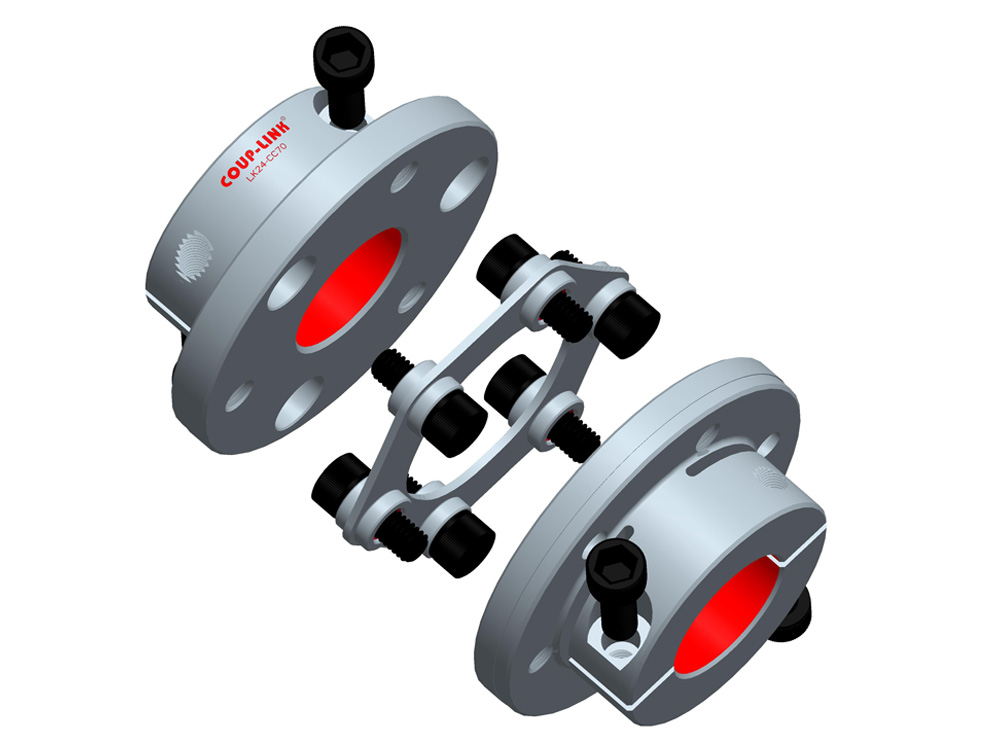

- LK24-1 Single Disc Coupling - Clamp Type
LK24-1 Single Disc Coupling - Clamp Type
Note: please let us know the model and the φd1φd2 of product you need.

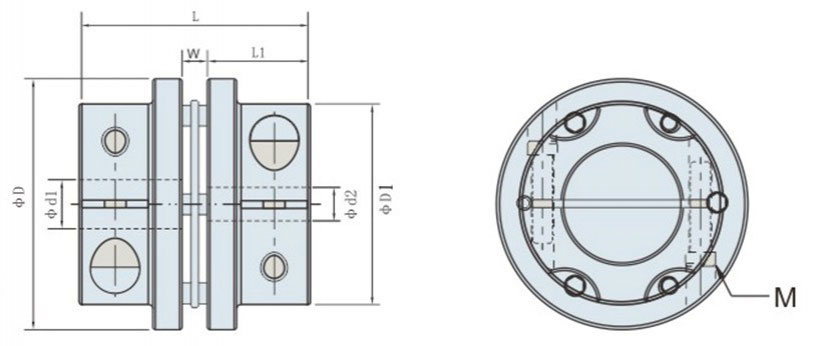

| Model | φd1φd2 Max. Bore Diameter(mm) |
φD | Φd1 | L | W | L1 | M | Tightening Torque ( N.M ) |
|
| LK24-CC60 | ≤22 | 60 | 44 | 54 | 6 | 24 | 2-M6 | 8 | |
| 22-28 | 48 | ||||||||
| LK24-CC70 | ≤25 | 70 | 47 | 57.3 | 7.3 | 25 | 2-M6 | 8 | |
| 25-35 | 56 | ||||||||
| LK24-CC80 | ≤25 | 80 | 53 | 69 | 9 | 30 | 2-M8 | 20 | |
| 25-35 | 70 | ||||||||
| LK24-CC90 | ≤32 | 90 | 66 | 70 | 10 | 30 | 2-M8 | 20 | |
| 34-42 | 74 |
| Model | Rated Torque ( N.m ) | Max.Rotational Frequency ( rpm ) | Moment of Inertia ( Kg.m2 ) | Static Torsional Stiffness ( N.m / rad ) | Errors of Eccentricity ( mm ) | Max. Angular Misalignment ( °) | Max. Axial Misalignment ( mm ) | Mass ( g ) |
| LK24-CC60 | 60 | 18000 | 2.0×10-4 | 105000 | 0.02 | 1 | ±0.3 | 471 |
| LK24-CC70 | 100 | 18000 | 4.1×10-4 | 245000 | 0.02 | 1 | ±0.5 | 681 |
| LK24-CC80 | 200 | 17000 | 8.1×10-4 | 313000 | 0.02 | 1 | ±0.5 | 1405 |
| LK24-CC90 | 300 | 15000 | 1.6×10-4 | 522000 | 0.02 | 1 | ±0.6 | 1613 |
For more information, please click here.
