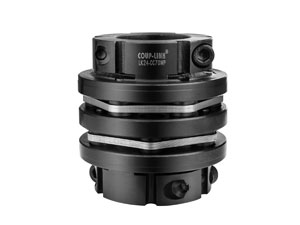

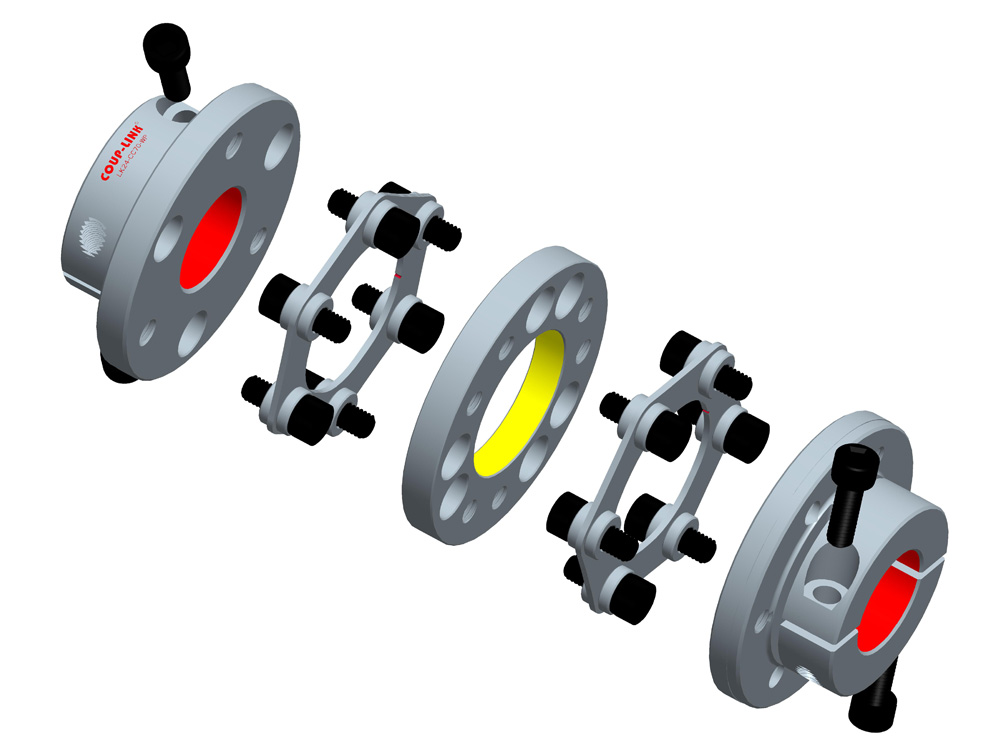

- LK24-2 Double Disc Coupling - Clamp Type
LK24-2 Double Disc Coupling - Clamp Type
Note: please let us know the model and the φd1φd2 of product you need.

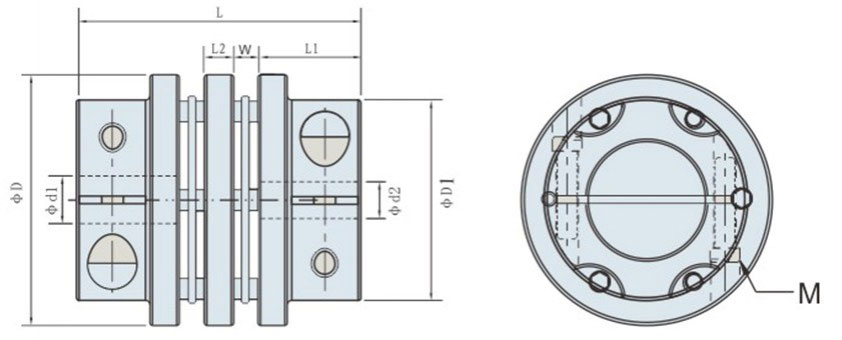

| Model | φd1φd2 Max. Bore Diameter | φD | Φd1 | L | W | L1 | L2 | M | Wrench Torque ( N.M ) |
|
| LK24-CC60-WP | ≤22 | 60 | 44 | 67 | 6 | 24 | 7 | 2-M6 | 8 | |
| 22-28 | 48 | |||||||||
| LK24-CC70-WP | ≤25 | 70 | 47 | 72.6 | 7.3 | 25 | 8 | 2-M6 | 8 | |
| 25-35 | 56 | |||||||||
| LK24-CC80-WP | ≤25 | 80 | 53 | 87.2 | 9 | 30 | 9.2 | 2-M8 | 20 | |
| 25-35 | 70 | |||||||||
| LK24-CC90-WP | ≤32 | 90 | 66 | 88 | 10 | 30 | 8 | 2-M8 | 20 | |
| 34-42 | 74 |
| Model | Rated Torque ( N.m ) | Max.Rotational Frequency ( rpm ) | Moment of Inertia ( Kg.m2 ) | Static Torsional Stiffness ( N.m / rad ) | Errors of Eccentricity ( mm ) | Max. Angular Misalignment ( °) | Max. Axial Misalignment ( mm ) | Mass ( g ) |
| LK24-CC60-WP | 60 | 14000 | 2.8×10-3 | 53000 | 0.2 | 1.5 | ±0.6 | 600 |
| LK24-CC70-WP | 100 | 14000 | 5.6×10-3 | 120000 | 0.25 | 1.5 | ±1.0 | 874 |
| LK24-CC80-WP | 200 | 13000 | 1.4×10-2 | 156000 | 0.32 | 1.5 | ±1.0 | 1773 |
| LK24-CC90-WP | 300 | 12000 | 2.2×10-2 | 261000 | 0.32 | 1.5 | ±1.2 | 2057 |
For more information, please click here.
