Side Mount Motor Bracket

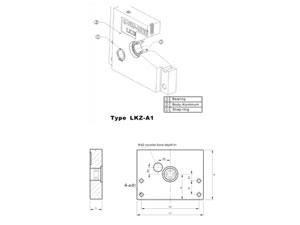

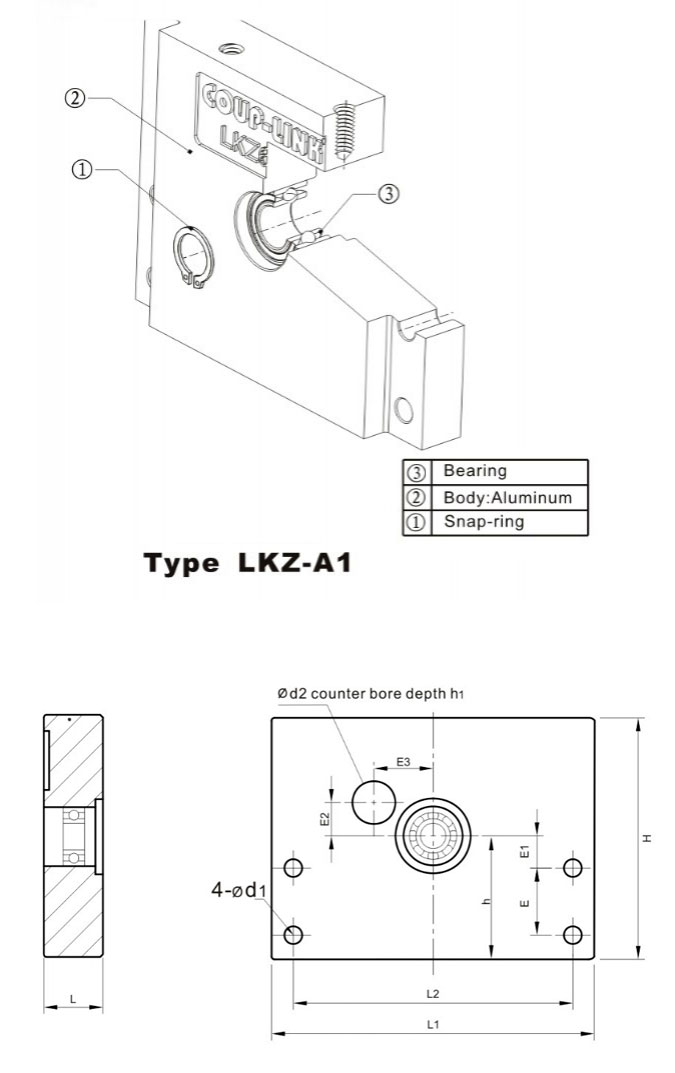

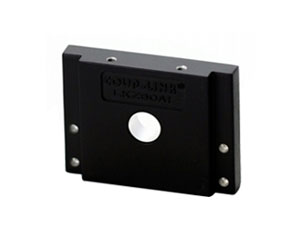

Cast aluminum motor bracket, type A
Model L L1 L2 H h E E1 E2 E3 d1 d2 h1
LKZ50A1 10 50 43 38.5 16 10 1.36 6 9 3.3 8 5
LKZ60A1 11 60 52 45 23 12.5 6 6.2 11 3.3 10 2
LKZ86A1 13 86 75 59 31 18.5 8 8 17.2 4.4 8 5
LKZ100A1 15 100 89 72 31 19 6 12 15 5.5 7 5

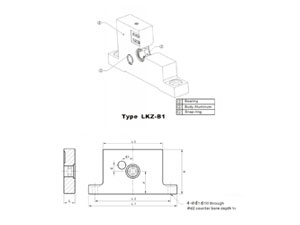

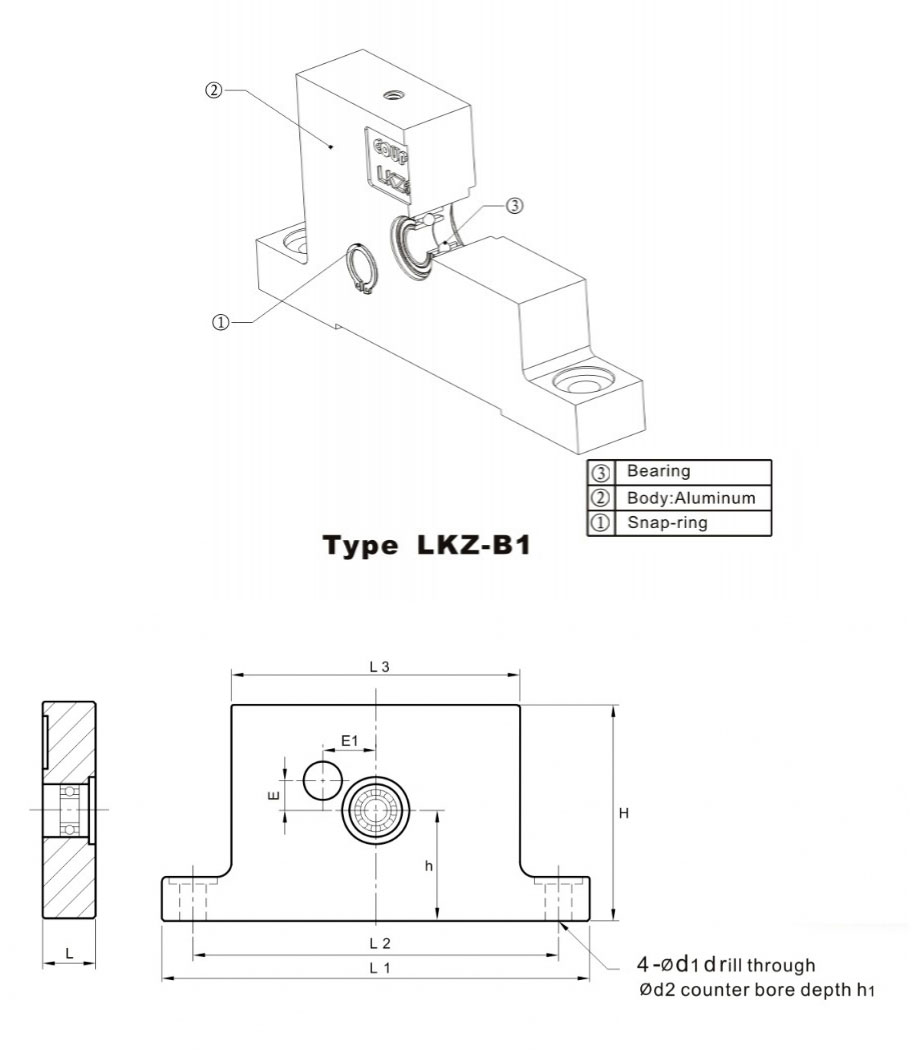

Cast aluminum motor bracket, type B
Model L L1 L2 H h±0.025 E E1 d1 d2 h1
LKZ50B1 12 75 62 38.5 16 6 9 4.4 8 1.5
LKZ60B1 13 89 76 45 23 6.2 11 5.4 10 1.5
LKZ86B1 13 113 100 59 31 8 17.2 5.4 9 1.5
LKZ100B1 16 107 92 72 31 12 15 6.5 11 2
GZLINK produces a variety of products, including disc couplings, slit couplings, jaw couplings, flexible couplings, ball screw support units and motor bracket. Our products are RoHS certified and sold to thousands of companies in America, Japan, and Singapore, etc. Users can browse our product list to find couplings, or contact us about customization services.
