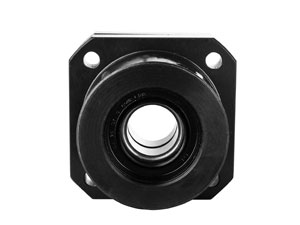

Ball Screw Support Unit, Type LFK Fixed Side

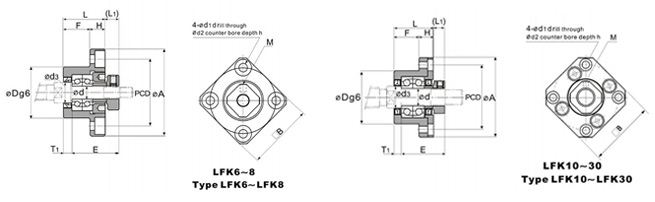

Dimensions
Model d L H F E D A PCD B L1 T1 d1 d2 φd3 h M Mass
(kg)
LFK6-E 6 20 7 13 22 22 36 28 28 5.5 3.5 3.4 6.5 9.5 4 M3 0.08
LFK8-E 8 23 9 14 26 28 43 35 35 7 4 3.4 6.5 11.5 4 M3 0.15
LFK10 10 27 10 17 29.5 34 52 42 42 7.5 5 4.5 8 14.5 4 M3 0.21
LFK12 12 27 10 17 29.5 36 54 44 44 7.5 5 4.5 8 15.5 4 M3 0.22
LFK15 15 32 15 17 36 40 63 50 52 10 6 5.5 9.5 19.5 6 M3 0.39
LFK17 17 45 22 23 47 50 77 62 61 11 9 6.6 11 23.5 10 M4 0.75
LFK20 20 52 22 30 50 57 85 70 68 8 10 6.6 11 24.5 10 M4 1.09
LFK25 25 57 27 30 60 63 98 80 79 13 10 9 15 31.5 13 M5 1.49
LFK30 30 62 30 32 61 75 117 95 93 11 12 11 17.5 37.5 15 M6 2.32
