Bellows Coupling

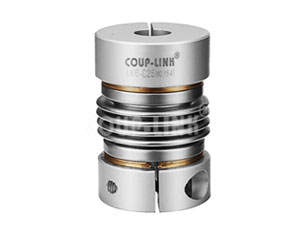

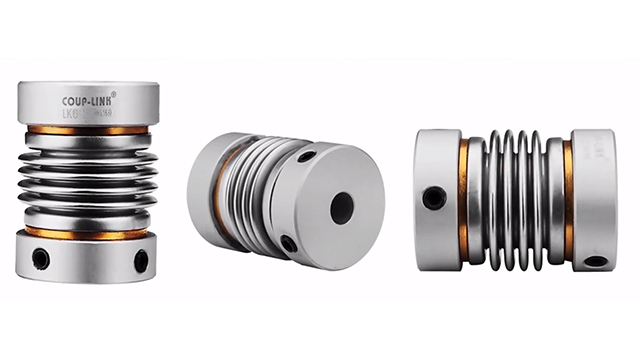

The bellows couplings consist of two aluminum hubs and a stainless steel bellows, combined through a bonding process. Because of the stainless steel bellow structure in the middle, the coupling can easily absorb a high parallel and angular misalignment and shaft endplay. The bellow wall is very thin, and capable of withstanding a torque with a certain degree of rotation stiffness, making it an ideal high precision servo shaft coupling.
Application:
The bellows couplings are commonly used in bar feeder encoder, laser engraving machine, grinding machine, tube production machine, motor test bench, laser cutting machines and more.
- The bellows couplings feature zero backlash, high torsional stiffness, low inertia and high misalignment compensation.
- The clockwise and counterclockwise characteristic is identical.
- Mounting options: set screw type, clamp type, clamping ring type, keyway type, etc.
Custom Design
According to customer's requirement, all the flexible and rigid couplings can be custom machined involving material choices, torque range, size, and flexible configurations, etc. We offer all kinds of servo motor coupling types in rigid, beam, bellows, curved jaw, disc, and oldham types allowing our customers to select the best coupling.In order to meet different customer requirements, in addition to bellow couplings, we also offer a variety of other precision couplings, including curved jaw couplings, beam couplings and disc pack couplings. We will perform strict quality inspection before delivery, and will encode each coupling to allow us to easily carry out tracking management. We have over 1000 different standard shaft couplings, and also offer customization services. Simply contact us for more information.
