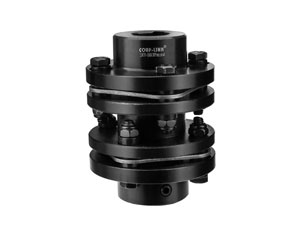

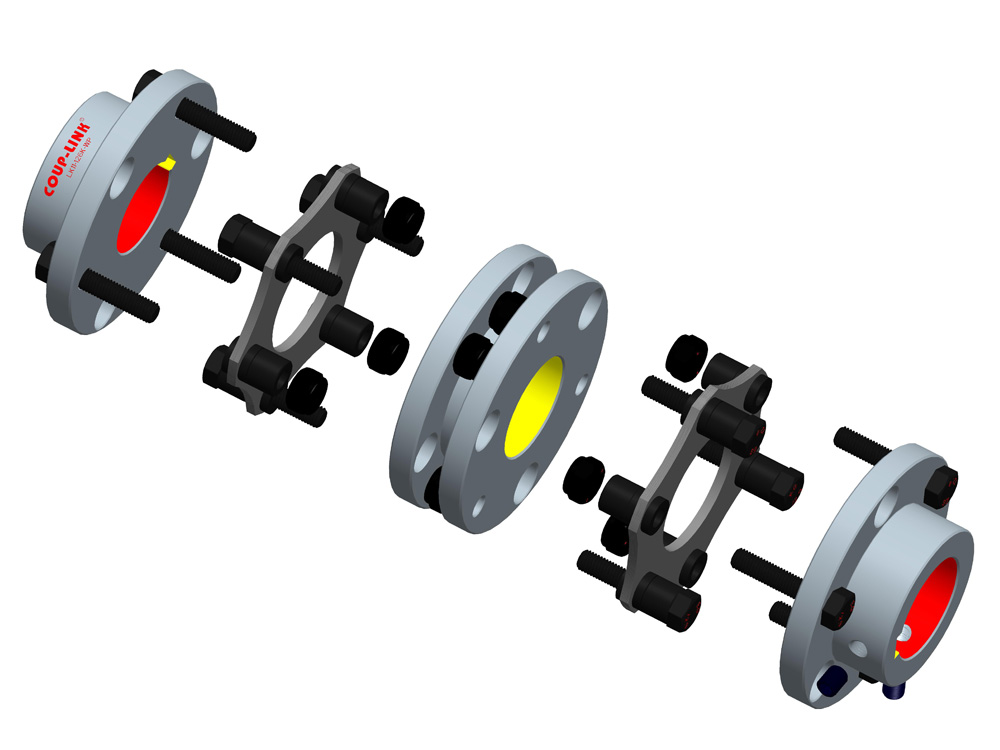

LK11-2 Double Disc Coupling - Keyway Type

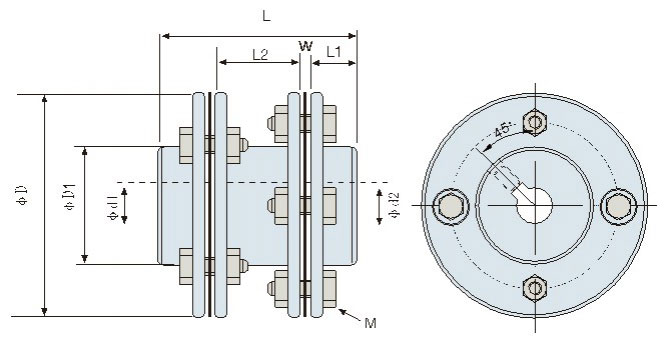

Dimensions
Note: please let us know the model and the φd1φd2 of product you need.
Model φd1φd2
Max. Bore Diameter 		φD φD1 L L1 L2 W M
LK11-56K-WP 20 56 32 74 20 24 5 4-M5
LK11-62K-WP 22 62 36 86 25 24 6 4-M6
LK11-68K-WP ≤22 68 36 86 25 24 6 4-M6
＞22~25 40
LK11-82K-WP ≤28 82 45 100 29 26 8 4-M8
＞28~35 54
LK11-94K-WP 38 94 58 107 30 30 8.5 4-M8
LK11-104K-WP 42 104 65 120 35 30 10 4-M8
LK11-115K-WP 45 115 67 141 39.5 38 12 6-M10
LK11-126K-WP 50 126 78 143 40 38 12.5 6-M10
LK11-144K-WP 60 144 82 162 45 46 13 6-M12
LK11-152K-WP 75 152 100 186 45 69 13.5 6-M12
LK11-178K-WP 80 178 118 218 55 80 14 6-M12
LK11-190K-WP 85 190 126 260 65 100 15 6-M14
LK11-210K-WP 90 210 140 290 75 110 15 6-M16
LK11-225K-WP 100 225 144 335 90 115 20 6-M16
LK11-262K-WP 115 262 166 391 100 145 23 6-M2
Specifications
Model Rated Torque
( N.m ) 		Max. Torque
( N.m ) 		Max.Rotational Frequency
( rpm ) 		Moment of Inertia
( Kg.m2 ) 		Static Torsional Stiffness
( N.m / rad ) 		Errors of Eccentricity
( mm ) 		Max. Angular Misalignment
( °) 		Max. Axial Misalignment
( mm ) 		Mass ( g )
LK11-56K-WP 25 50 15000 2.29×10-4 7.5X103 0.5 1 .5 ±1.2 580
LK11-62K-WP 40 80 14500 4.30X10-4 1.25X103 0.5 1.5 ±1.3 910
LK11-68K-WP 55 110 14000 5.95X10-4 13X103 0.5 1.5 ±1.4 1030
LK11-82K-WP 80 160 11000 1.45X10-3 39X103 0.5 1 .5 ±2.2 1820
LK11-94K-WP 170 340 9500 2.82X10-3 78X103 0.6 1 .5 ±2.6 2550
LK11-104K-WP 240 480 8800 4.74X10-3 115X103 0.6 1 .5 ±3.0 3510
LK11-115K-WP 330 660 8000 9.50X10-3 170X103 0.7 1 .5 ±3.2 5750
LK11-126K-WP 420 840 6800 1.30X10-2 200X103 0.8 1 .5 ±3.2 6570
LK11-144K-WP 700 1400 6000 2.44X10-2 350X103 0.9 1 .5 ±3.6 9400
LK11-152K-WP 800 1600 5800 3.03X10-2 750X10-3 1.4 2 ±3.6 10490
LK11-178K-WP 1300 2600 5100 7.23X10-2 1420X10-3 1.6 2 ±3.8 18260
LK11-190K-WP 2000 4000 4700 1.05X10-1 1690X10-3 2.0 2 ±3.8 23360
LK11-210K-WP 3900 7600 4300 1.89X10-1 2340X10-3 2.1 2 ±3.8 34200
LK11-225K-WP 4900 9800 4000 2.51X10-1 2970X10-3 2.3 2 ±3.8 39710
LK11-262K-WP 7900 1 5800 3400 5.28X10-1 5390X10-3 2.9 2 ±3.8 61580
