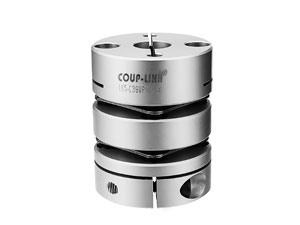

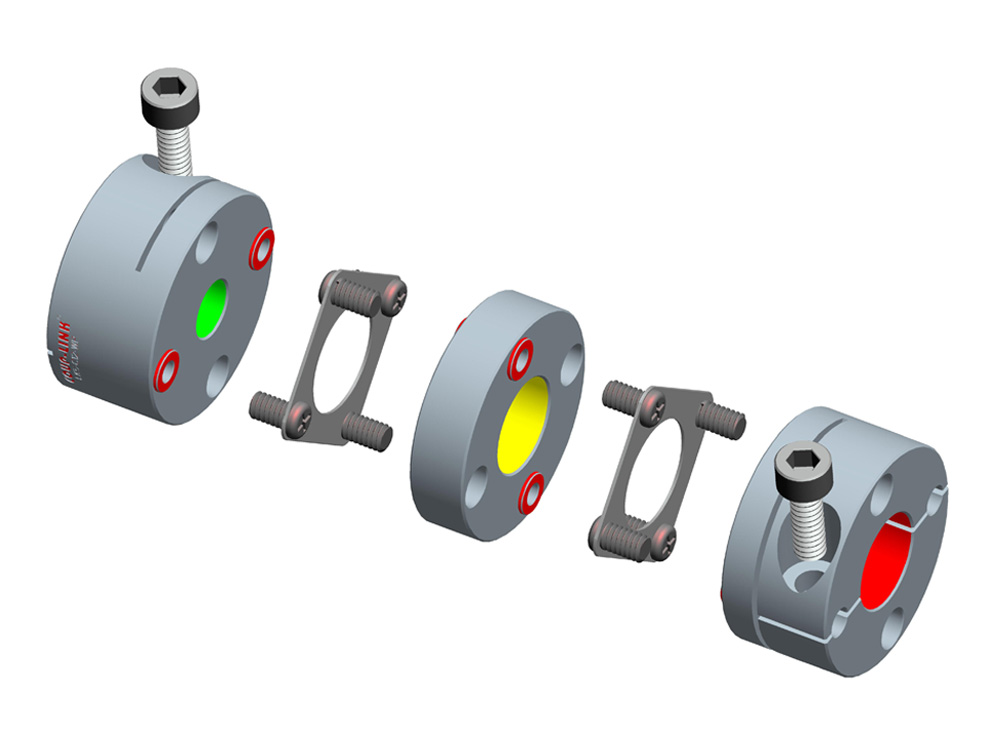

LK5-2 Double Disc Coupling - Clamp Type
Note: please let us know the model and the φd1φd2 of product you need.

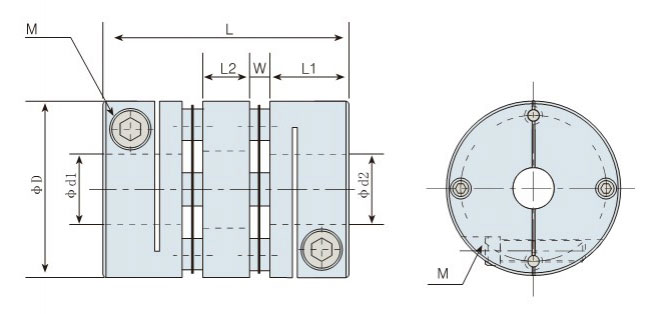

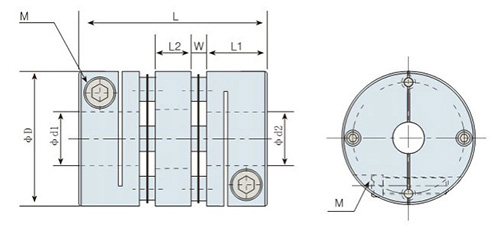

| Model | φd1φd2 Max. Bore Diameter | φD | L | W | L1 | L2 | M | Tightening Torque ( N.M ) |
| LK5-C12-wp | 5 | 12 | 15.9 | 0.55 | 5.9 | 3.0 | M1.6 | 0.14 |
| LK5-C15-wp | 5 | 15 | 20 | 1.25 | 7.6 | 2.3 | M2 | 0.4 |
| LK5-C16-wp | 6 | 16 | 23 | 1.25 | 7.875 | 4.75 | M2 | 0.4 |
| LK5-C19-wp | 8 | 19.5 | 27.8 | 2.3 | 9.2 | 4.8 | M2.5 | 0.8 |
| LK5-C26-wp | 10 | 26 | 35 | 2.8 | 11.35 | 6.7 | M3 | 1.2 |
| LK5-C30-wp | 14 | 30 | 35 | 3.1 | 11.35 | 6.1 | M3 | 1.2 |
| LK5-C34s-wp | 14 | 34 | 41 | 3.6 | 13.4 | 7.0 | M4 | 2.5 |
| LK5-C34-wp | 14 | 34 | 45 | 3.6 | 14.5 | 8.8 | M4 | 2.5 |
| LK5-C39-wp | 16 | 39 | 49 | 4.5 | 15.0 | 10.0 | M4 | 2.5 |
| LK5-C44-wp | 19 | 44 | 50 | 4.8 | 15.0 | 10.4 | M4 | 2.5 |
| LK5-C50-wp | 22 | 50 | 57 | 5.5 | 17.5 | 11.0 | M5 | 5 |
| LK5-C56-wp | 24 | 56 | 63 | 5.5 | 20.0 | 12.0 | M5 | 5 |
| LK5-C62-wp | 30 | 62 | 69.5 | 3.0 | 24.0 | 15.5 | M6 | 8 |
| LK5-C68-wp | 35 | 68 | 74 | 6.0 | 24.0 | 14.0 | M6 | 8 |
| LK5-C82-wp | 40 | 82 | 98 | 8.0 | 30.0 | 22.0 | M8 | 20 |
| LK5-C94-wp | 40 | 94 | 98 | 8.5 | 30.0 | 21.0 | M10 | 40 |
| LK5-C104-wp | 45 | 104 | 102 | 10 | 30.0 | 22.0 | M10 | 40 |
| Model | Rated Torque ( N.m ) | Max. Torque ( N.m ) | Max.Rotational Frequency ( rpm ) | Moment of Inertia ( Kg.m2 ) | Static Torsional Stiffness (N.m / rad) | Errors of Eccentricity ( mm ) | Max. Angular Misalignment ( ° ) | Max. Axial Misalignment ( mm ) | Mass ( g ) |
| LK5-C12-wp | 0.25 | 0.5 | 10000 | 2.00×10-7 | 133 | 0.04 | 1.0 | ±0.08 | 6.5 |
| LK5-C15-wp | 0.6 | 1.2 | 10000 | 3.40×10-7 | 196 | 0.04 | 1.0 | ±0.1 | 7.0 |
| LK5-C16-wp | 0.6 | 1.2 | 10000 | 3.29×10-7 | 255 | 0.04 | 1.0 | ±0.1 | 10.3 |
| LK5-C19-wp | 1.0 | 2.0 | 10000 | 7.51×10-7 | 700 | 0.12 | 1.5 | ±0.4 | 16.6 |
| LK5-C26-wp | 1.4 | 2.8 | 10000 | 3.13×10-6 | 1850 | 0.15 | 1.5 | ±0.4 | 37.1 |
| LK5-C30-wp | 2.6 | 5.2 | 10000 | 4.95×10-6 | 2850 | 0.17 | 1.5 | ±0.4 | 44.0 |
| LK5-C34s-wp | 2.8 | 5.6 | 10000 | 1.03×10-5 | 4050 | 0.18 | 1.5 | ±0.4 | 70.9 |
| LK5-C34-wp | 2.8 | 5.6 | 10000 | 1.13×10-5 | 4050 | 0.18 | 1.5 | ±0.4 | 78.0 |
| LK5-C39-wp | 5.8 | 11.6 | 10000 | 2.21×10-5 | 9000 | 0.25 | 1.5 | ±0.5 | 116.2 |
| LK5-C44-wp | 8.7 | 17.4 | 10000 | 3.56×10-5 | 10000 | 0.25 | 1.5 | ±0.7 | 147.3 |
| LK5-C50-wp | 15 | 30 | 10000 | 6.82×10-5 | 16000 | 0.30 | 1.5 | ±0.8 | 218.4 |
| LK5-C56-wp | 25 | 50 | 10000 | 1.18×10-4 | 25000 | 0.30 | 1.5 | ±0.8 | 301.9 |
| LK5-C62-wp | 40 | 80 | 10000 | 2.13×10-4 | 30000 | 0.35 | 1.5 | ±0.9 | 422 |
| LK5-C68-wp | 55 | 110 | 10000 | 2.82×10-4 | 35000 | 0.35 | 1.5 | ±0.9 | 488.4 |
| LK5-C82-wp | 80 | 160 | 10000 | 8.29×10-4 | 45000 | 0.52 | 1.5 | ±1.0 | 985.8 |
| LK5-C94-wp | 185 | 370 | 10000 | 1.51×10-3 | 50000 | 0.55 | 1.5 | ±1.3 | 1370.1 |
| LK5-C104-wp | 255 | 510 | 10000 | 2.34×10-3 | 60000 | 0.55 | 1.5 | ±1.5 | 1734 |
For more information, please click here.
