- LK9-1 Single Disc Coupling - Locking Assemblies Coupling
LK9-1 Single Disc Coupling - Locking Assemblies Coupling
Note: please let us know the model and the φd1φd2 of product you need.
| Model | φd1φd2

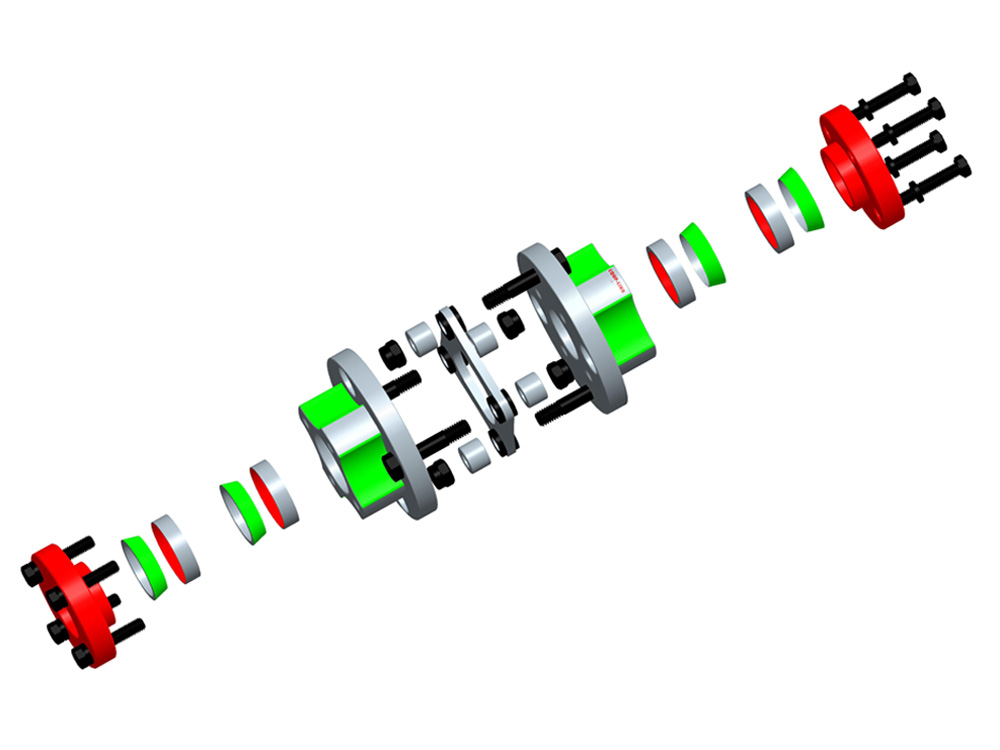

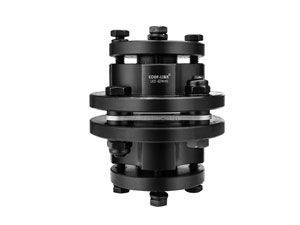

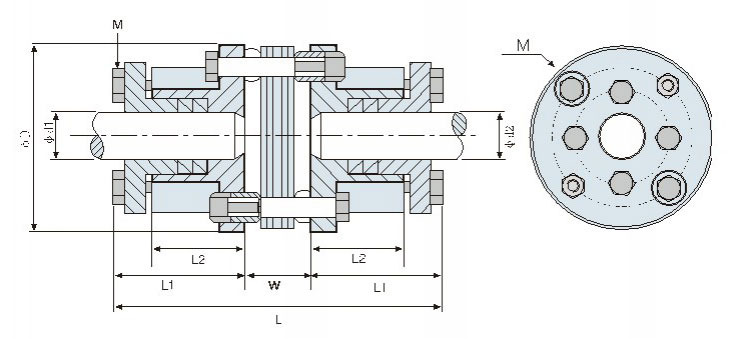

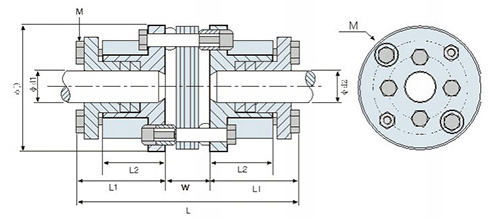

Max. Bore Diameter(mm) | φD | L | W | L1 | L2 | M | Wrench Torque ( N.M ) |
| LK9-68 | 22 | 68 | 90 | 7 | 41.5 | 26 | M5(4) | 4.0 |
| LK9-82 | 30 | 82 | 95 | 7 | 44 | 26 | M6(4) | 7.0 |
| LK9-94 | 35 | 94 | 110 | 8 | 51 | 29 | M6(4) | 7.0 |
| LK9-104 | 40 | 104 | 124 | 10 | 57 | 34 | M6(4) | 7.0 |
| LK9-126 | 50 | 126 | 152 | 11 | 70.5 | 42 | M8(6) | 15.0 |
| LK9-144 | 58 | 144 | 170 | 12 | 79 | 48 | M8(6) | 15.0 |
| Model | Rated Torque ( N.m ) | Max. Torque ( N.m ) | Max.Rotational Frequency ( rpm ) | Moment of Inertia ( Kg.m2 ) | Static Torsional Stiffness ( N.m / rad ) | Errors of Eccentricity ( mm ) | Max. Angular ( °) | Max. Axial Misalignment ( mm ) | Mass ( g ) |
| LK9-68 | 55 | 110 | 4500 | 0.39×10-3 | 31×103 | 0.02 | 1 | ±1.0 | 1000 |
| LK9-82 | 80 | 160 | 4500 | 0.96×10-3 | 89×103 | 0.02 | 1 | ±1.0 | 1554 |
| LK9-94 | 150 | 300 | 4500 | 1.85×10-3 | 180×103 | 0.02 | 1 | ±1.0 | 2432 |
| LK9-104 | 220 | 440 | 4500 | 2.96×10-3 | 265×103 | 0.02 | 1 | ±1.0 | 3050 |
| LK9-126 | 350 | 700 | 4500 | 7.1×10-3 | 450×103 | 0.02 | 1 | ±1.0 | 6524 |
| LK9-144 | 500 | 1000 | 4500 | 14.3×10-3 | 790×103 | 0.02 | 1 | ±1.0 | 8739 |
For more information, please click here.
