- LK3-2 Double Disc Coupling - Clamp Type

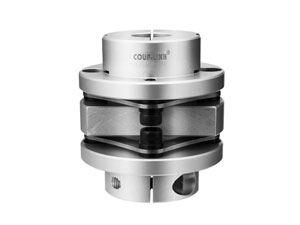

LK3-2 Double Disc Coupling - Clamp Type

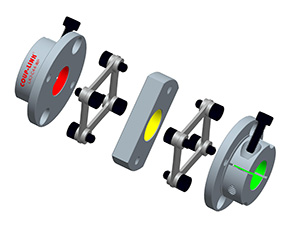

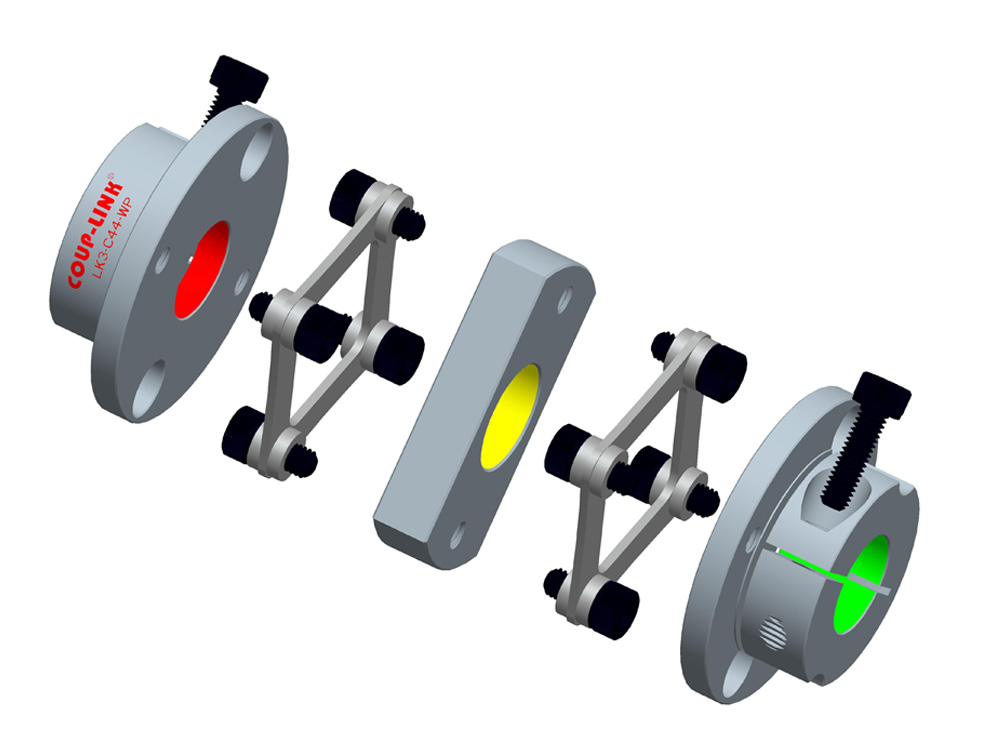

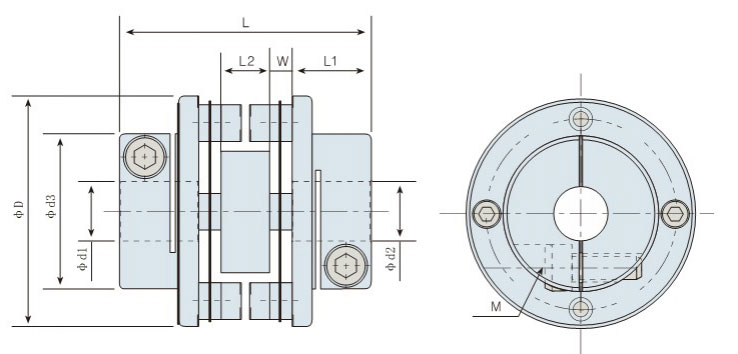

Note: please let us know the model and the φd1φd2 of product you need.
| Model | φd1φd2 Max. Bore Diameter(mm) | φD | L | φD3 | W | L1 | L2 | M | Wrench Torque ( N.M ) |
| LK3-C34-WP | 9 | 34 | 37 | 21.6 | 3.6 | 11.7 | 6.4 | M3 | 1.2 |
| LK3-C44-WP | 14 | 44 | 47 | 29.6 | 4.8 | 14.6 | 8.2 | M4 | 2.5 |
| LK3-C56-WP | 20 | 56 | 61 | 38.0 | 5.5 | 19.75 | 10.5 | M5 | 5 |
| LK3-C68-WP | 25 | 68 | 74 | 46.0 | 6 | 24 | 14 | M6 | 8 |
| LK3-C82-WP | 30 | 82 | 98 | 56.0 | 8 | 30 | 22 | M8 | 20 |
| Model | Rated Torque ( N.m ) | Max.Torque (N.m) | Max.Rotational Frequency ( rpm ) | Moment of Inertia ( Kg.m2 ) | Static Torsional Stiffness ( N.m / rad ) | Errors of Eccentricityrity (MM) | Max. Angular Misalignment ( °) | Max. Axial Misalignment ( mm ) | Mass ( g ) |
| LK3-C34-WP | 2.8 | 5.6 | 10000 | 6.5×10-6 | 1300 | 0.02 | 2 | ±0.3 | 39 |
| LK3-C44-WP | 8.7 | 17.4 | 10000 | 25.4×10-6 | 2800 | 0.02 | 2 | ±0.3 | 86 |
| LK3-C56-WP | 25 | 50 | 10000 | 82.5×10-6 | 4000 | 0.02 | 2 | ±0.3 | 236 |
| LK3-C68-WP | 55 | 110 | 10000 | 225×10-6 | 6200 | 0.02 | 2 | ±0.3 | 340 |
| LK3-C82-WP | 80 | 160 | 10000 | 985×10-6 | 8300 | 0.02 | 2 | ±0.3 | 751 |
