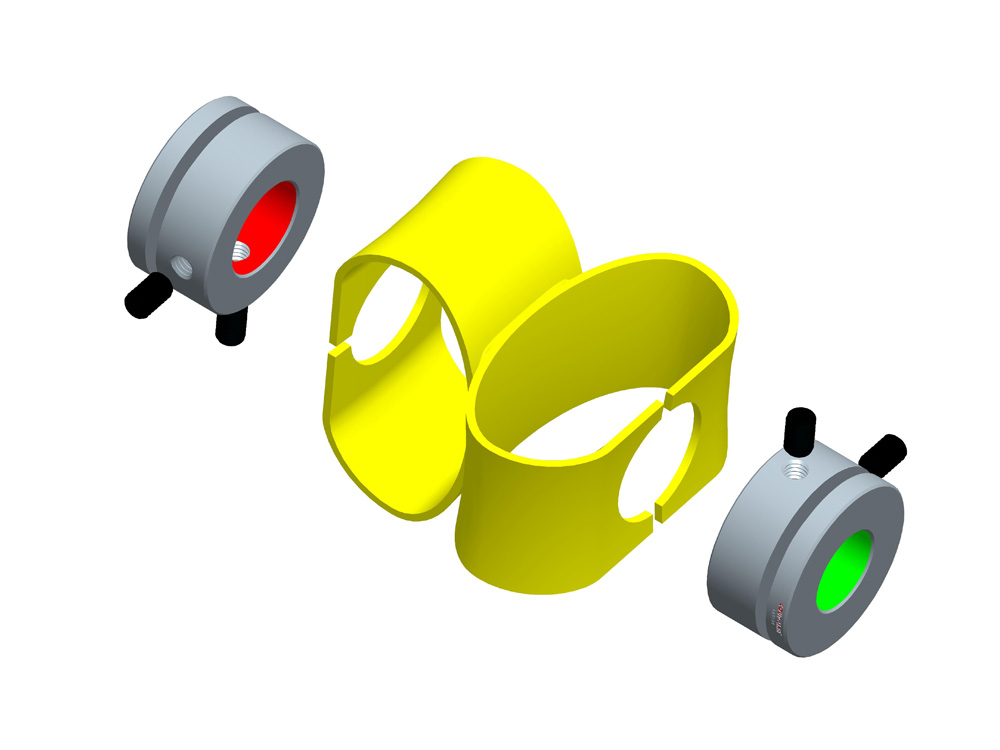

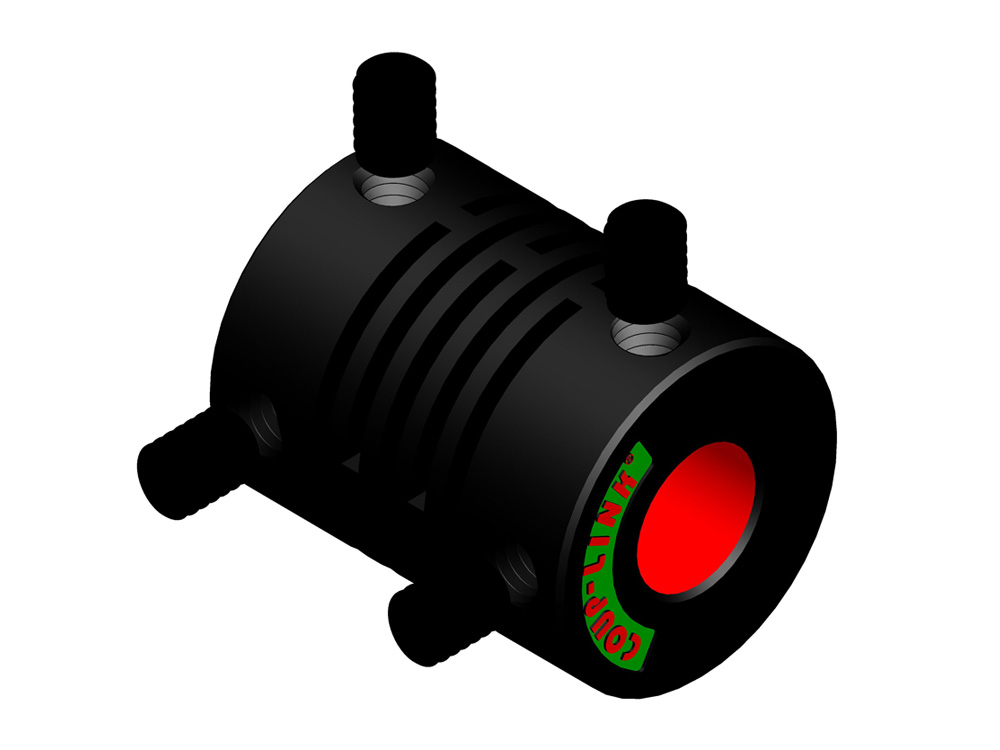

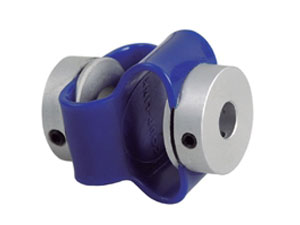

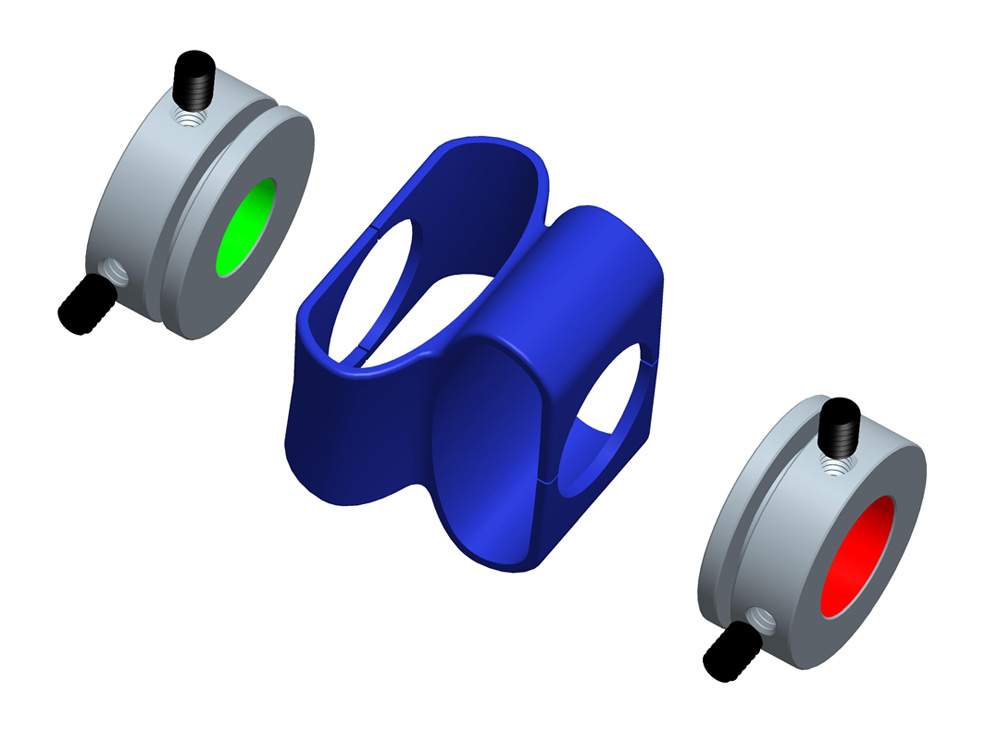

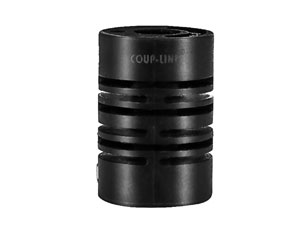

Encoder Coupling, Step Coupling

The encoder couplings are used for connecting the shaft and the encoder. The hubs are built with aluminum alloy and the main parts are made using glass fiber or polyurethane. These couplings are known for their flexibility and feature the following characteristics:
  • Zero backlash
  • Low inertia
  • High elastic ability
  • Compact structure
  • Easy to maintain

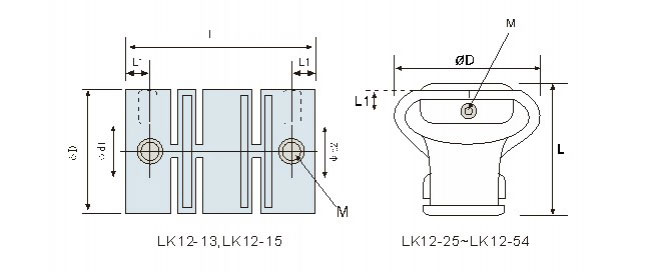

Dimensions
Model φd1φd2
Max. Bore Diameter 		φD L L1 M Tightening Torque
( N.M )
LK12-10 3 10 12 1.8 M2 0.08
LK12-13 4 13 21 3.0 M3 0.15
LK12-15 6 15 22 3.0 M3 0.25
LK12-19 8 19 24 3.5 M4 0.4
LK12-22 10 22 26 3.6 M4 0.5
LK12-25 10 25 32 3.2 M3 1.2
LK12-44 14 44 53 6.0 M4 2.5
LK12-44L 14 44 65 6.0 M4 2.5
LK12-54 17 54 66 8.0 M6 8
LK12-54L 17 54 78 8.0 M6 8
Specifications
Model Rated Torque
( N.m ) 		Max. Torque
( N.m ) 		Max. Rotational Frequency
( rpm ) 		Max. Angular Misalignment
( °) 		Mass ( g )
LK12-10 0.18 0.36 4000 4 1.1
LK12-13 0.5 1.0 4000 4 3.1
LK12-15 0.8 1.6 6000 4 3.9
LK12-19 1.2 2.4 6000 4 7.3
LK12-22 1.7 3.4 6000 4 10
LK12-25 0.8 1.6 6000 3 12
LK12-44 1.3 2.6 4000 3 45
LK12-44L 1.3 2.6 4000 3 45
LK12-54 2.25 4.5 3500 3 85
LK12-54L 2.25 4.5 3500 3 85

Custom Design

According to customer's requirement, all the flexible and rigid couplings can be custom machined involving material choices, torque range, size, and flexible configurations, etc. We offer all kinds of servo motor coupling types in rigid, beam, bellows, curved jaw, disc, and oldham types allowing our customers to select the best coupling.
