LK11-1 Single Disc Coupling - Keyway Type

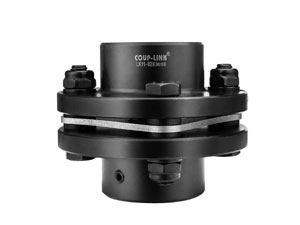

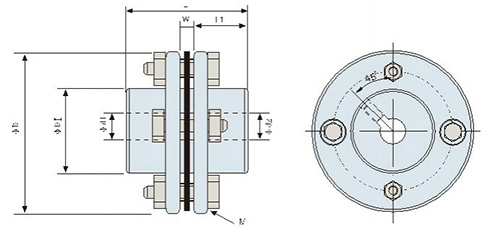

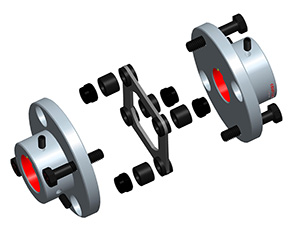

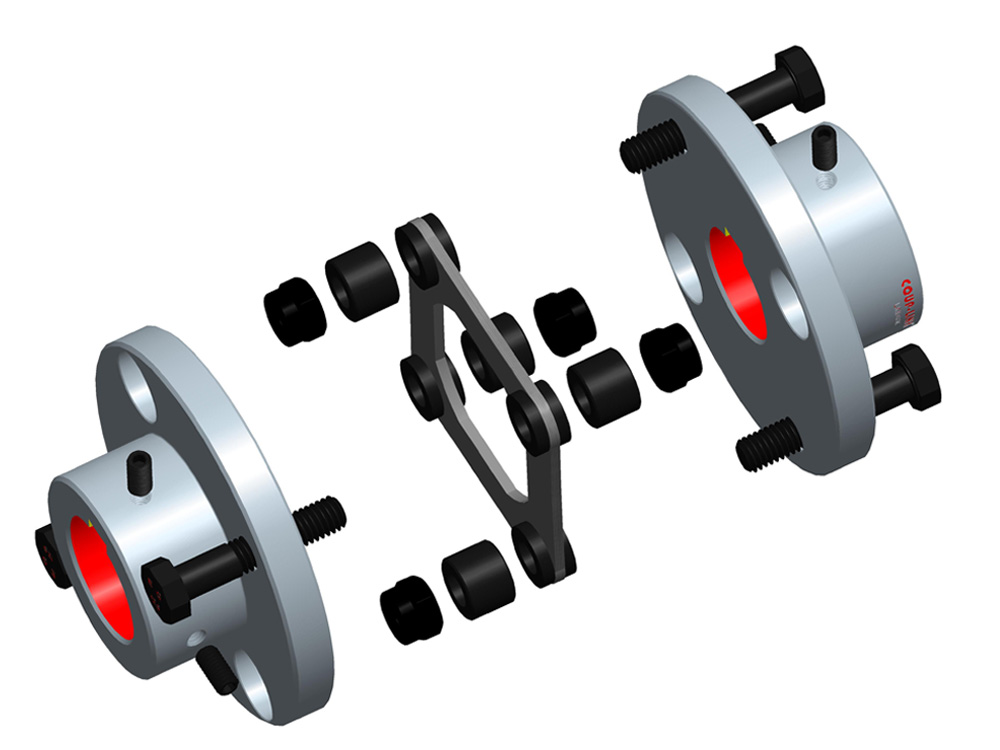

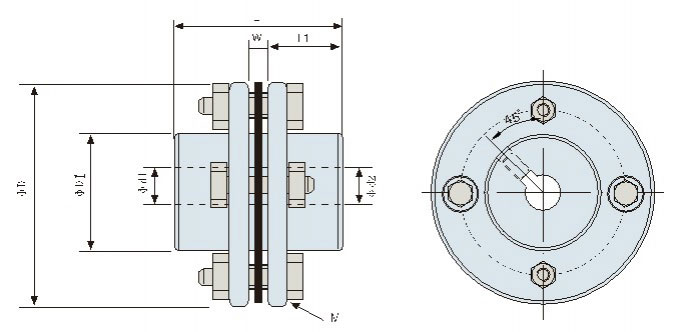

Dimensions
Note: please let us know the model and the φd1φd2 of product you need.
Model φd1φd2
Max. Bore Diameter 		φD φD1 L L1 W M
LK11-56K 20 56 32 45 20 5.0 M5
LK11-62K 22 62 36 56 25 6 M6
LK11-68K ≤22 68 36 56 25 6 M6
＞22~25 40
LK11-82K ≤28 82 45 66 29 8 M8
＞28~35 54
LK11-94K 38 94 58 68.5 30 8.5 M8
LK11-104K 42 104 65 80 35 10 M8
LK11-115K 45 115 67 91 39.5 12 M10
LK11-126K 50 126 78 92.5 40 12.5 M10
LK11-144K 60 144 82 103 45 13 M12
LK11-152K 75 152 100 103.5 45 13.5 M12
LK11-178K 80 178 118 124 55 14 M12
LK11-190K 85 190 126 145 65 15 M14
LK11-210K 90 210 140 165 75 15 M16
LK11-225K 100 225 144 200 90 20 M16
LK11-262K 115 262 166 223 100 23 M20
Specifications
Model Rated Torque
( N.m ) 		Max.Torque
( N.m ) 		Max.Rotational Frequency
( rpm ) 		Moment of Inertia
( Kg.m2 ) 		Static Torsional Stiffness
( N.m / rad ) 		Errors of Eccentricity
( mm ) 		Max. Angular
( °) 		Max. Axial Misalignment
( mm ) 		Mass ( g )
LK11-56K 25 50 20000 1.30×10-4 15×103 0.02 1 ±0.6 330
LK11-62K 40 80 18000 2.50×10-4 25×103 0.02 1 ±0.7 530
LK11-68K 55 110 15000 3.44×10-4 28×103 0.02 1 ±0.7 590
LK11-82K 80 160 14000 8.41×10-4 81×103 0.02 1 ±1.1 1000
LK11-94K 170 340 11000 1.64×10-3 165×103 0.02 1 ±1.3 1490
LK11-104K 240 480 9800 2.9×10-3 240×103 0.02 1 ±1.5 2140
LK11-115K 330 660 8700 4.68×10-3 310×103 0.02 1 ±1.6 2830
LK11-126K 420 840 8000 7.53×10-3 410×103 0.02 1 ±1.6 3790
LK11-144K 700 1400 6800 1.38×10-2 760×103 0.02 1 ±1.8 5320
LK11-152K 800 1600 5800 1.59×10-2 836×103 0.03 1 ±1.8 5520
LK11-178K 1300 2600 5100 4.05×10-2 1065×103 0.03 1 ±1.9 10230
LK11-190K 2000 4000 4700 5.95×10-2 1150×103 0.03 1 ±1.9 13180
LK11-210K 3900 7600 4300 1.04×10-1 1520×103 0.03 1 ±1.9 18940
LK11-225K 4900 9800 4000 1.40×10-1 1930×103 0.03 1 ±1.9 22070
LK11-262K 7900 15800 3400 2.91×10-1 3500×103 0.03 1 ±1.9 33940
