Flexible and Rigid Shaft Couplings

    1. Curved Jaw Coupling, Jaw Coupling
    2. Curved Jaw Coupling The curved jaw coupling consists of two metal hubs and a polyurethane elastic body, which gives it an excellent impact absorption performance.
    1. LK3-1
    2. Disc CouplingThe disc couplings consist of two metal hubs and a stainless membrane. The stainless membrane is thin and easy to bend, thus allowing it to better absorb deviations. The disc couplings are classified into a single and double membrane shaft coupling.
    1. Beam Coupling
    2. Beam CouplingThe beam couplings use the slit to balance the relative torque and transmit the torque. It features no backlash and is easy to maintain. Beam couplings are classified into helical slit couplings and parallel slit couplings.
    1. Oldham Coupling
    2. Oldham CouplingThe Oldham couplings consist of two hubs and a center block, with the center block made of a plastic material in order to absorb deviation, reduce vibration, and ensure electrical insulation.
    1. High-Gain Rubber Type Coupling
    2. High-Gain Rubber Type CouplingHigh-gain rubber type couplings consist of aluminum alloy and rubber. There is no clearance, and it features a better response ability over other shaft coupling types.
    1. Bellows Coupling
    2. Bellows CouplingThe bellow couplings are capable of absorbing a large radical, axial and angular deviation.
    1. Rigid Coupling
    2. Rigid CouplingThe rigid shaft couplings feature strict requirements for installation, and cannot deviate. Because of their small volume and easy installation, they are becoming increasingly popular.

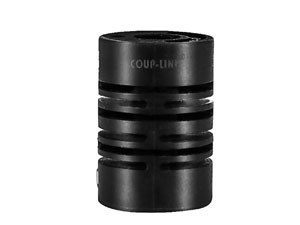

    1. Encoder Coupling
    2. Encoder CouplingEncoder couplings are used in encoders, and are popular due to their excellent elasticity and ability to absorb a large deviation.
    Uses of Shaft Coupling/Servo Motor Coupling:
  • To transfer power from one end to another end.
    (Commonly used in transferring motor power to another one).
  • To provide for misalignment of the shafts
  • To improve mechanical flexibility.
  • To help/protect against overloads, reducing the transmission of shock loads from one shaft to another.

As an experienced shaft coupling manufacturer, GZLINK is equipped with advanced processing equipment sets and precise quality inspection machines, and strictly follows the ISO9001:2008 quality management system. All of our products have passed the RoHS certificate. Now we provide more than 20 series of couplings, which are suitable for different applications. In addition to the products shown in the pages, we can customize couplings according to your needs.
