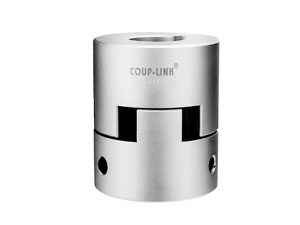

- LK19 Jaw Coupling - Keyway Type

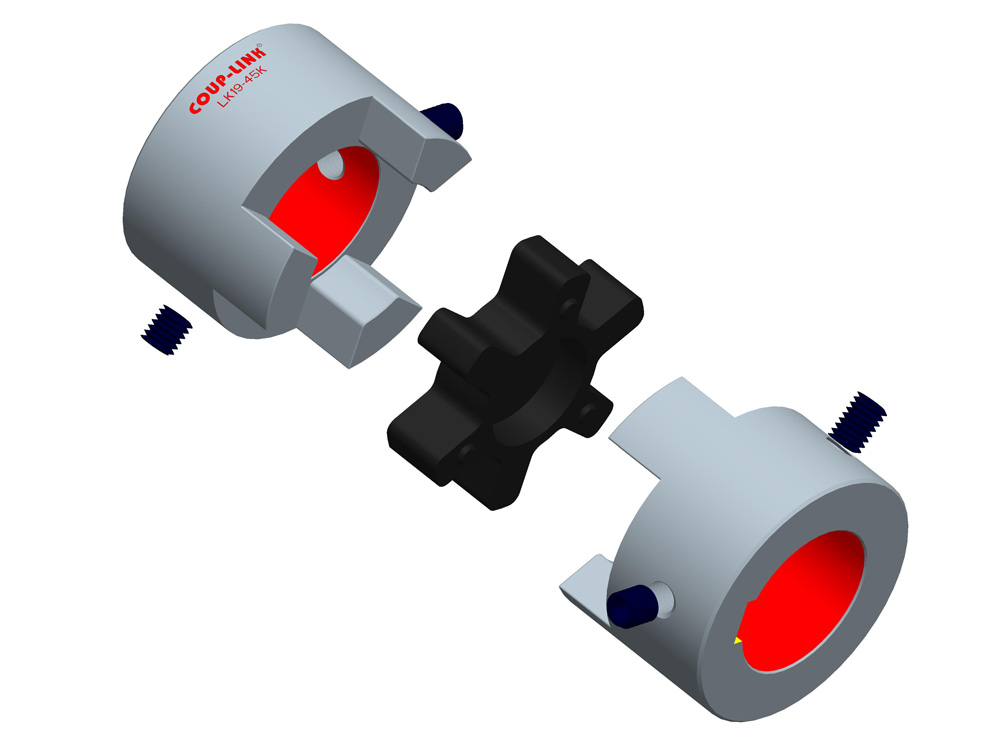

LK19 Jaw Coupling - Keyway Type
Note: please let us know the model and the φd1φd2 of product you need.

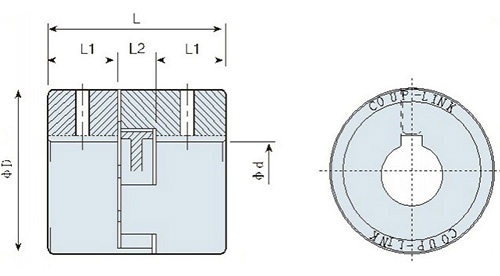

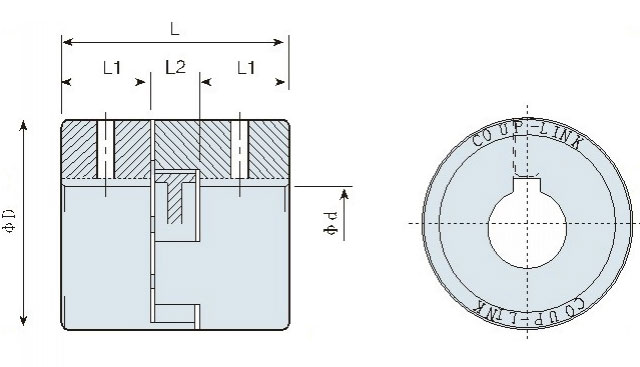

| Model | φd1φd2 Max. Bore Diameter | φD | L | L1 | L2 | M | Tightening Torque ( N.M ) |
| LK19-27K | 16 | 27 | 44 | 15.5 | 13 | M5 | 5 |
| LK19-35K | 20 | 35 | 50 | 18.5 | 13 | M5 | 5 |
| LK19-45K | 26 | 45 | 55 | 21 | 13 | M6 | 8 |
| LK19-55K | 28 | 55 | 55 | 21 | 13 | M6 | 8 |
| LK19-55LK | 28 | 55 | 61 | 24 | 13 | M6 | 8 |
| LK19-66K | 36 | 66 | 88 | 35 | 18 | M8 | 20 |
| LK19-85K | 48 | 85 | 110 | 44 | 22 | M8 | 20 |
| Model | Rated Torque ( N.m ) | Max.Torque ( N.m ) | Max.Rotational Frequency ( rpm ) | Moment of Inertia ( Kg.m2 ) | Errors of Eccentricity ( mm ) | Max. Angular ( °) | Max. Axial Misalignment ( mm ) | Mass ( g ) |
| LK19-27K | 2.3 | 4.5 | 12000 | 5.1×10-6 | 0.2 | 1.0 | ±0.5 | 60 |
| LK19-35K | 4.5 | 9 | 9000 | 1.78×10-5 | 0.2 | 1.0 | ±0.5 | 120 |
| LK19-45K | 15 | 30 | 7000 | 5.35×10-5 | 0.2 | 1.0 | ±0.5 | 210 |
| LK19-55K | 22 | 44 | 6000 | 1.14×10-4 | 0.3 | 1.0 | ±0.5 | 310 |
| LK19-55LK | 22 | 44 | 6000 | 1.4×10-4 | 0.3 | 1.1 | ±0.5 | 358 |
| LK19-66K | 40 | 80 | 5000 | 4.33×10-4 | 0.3 | 1.0 | ±0.7 | 785 |
| LK19-85K | 75 | 150 | 4000 | 1.43×10-3 | 0.3 | 1.0 | ±0.7 | 1560 |
For more information, please click here.
