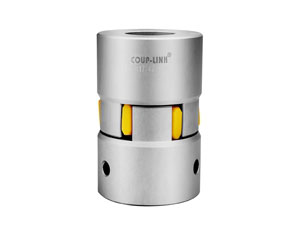

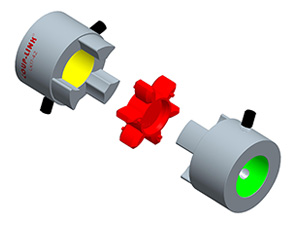

LK17-1 Curved Jaw Coupling - Setscrew Type

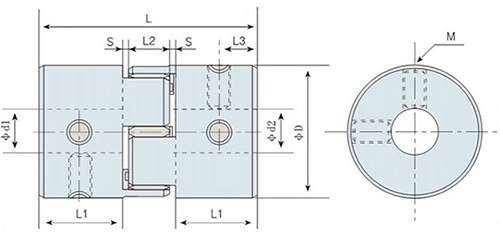

Dimensions
Note: please let us know the model and the φd1φd2 of product you need.

Model 		φd1φd2
Max. Bore Diameter 		φD L L1 L2 S L3 M Wrench Torque
( N.M )
LK17-42 24 42 66 25 12 2.0 8.5 M6 8
LK17-56 32 56 78 30 14 2.0 10 M6 8
LK17-66 35 66 90 35 15 2.5 10.5 M8 20
LK17-82 45 82 114 45 18 3.0 15.5 M8 20
LK17-98 60 98 126 50 20 3.0 17 M10 40
LK17-108 60 108 140 54.5 24 3.5 23 M10 40
Specifications
Model Rated Torque
( N.m ) 		Max. Torque
( N.m ) 		Max.Rotational Frequency
( rpm ) 		Moment of Inertia
( Kg.m2 ) 		Static Torsional Stiffness
( N.m / rad ) 		Errors of Eccentricity
( mm ) 		Max. Angular Misalignment
( °) 		Max. Axial Misalignment
( mm ) 		Mass ( g )
LK17-42 32 64 13000 1.14×10-4 550 0.02 1.0 +0.80 0 218
LK17-56 46 92 10500 4.4×10-3 1510 0.02 1.0 +0.80 0 338
LK17-66 109 218 8300 9.0×10-3 2790 0.02 1.0 +0.80 0 66
LK17-82 135 270 7000 1.8×10-2 3550 0.02 1.0 +1.0 0 1139
LK17-98 260 520 6000 2.0×10-2 4700 0.02 1.0 +1.0 0 1952
LK17-108 430 860 5500 3.3×10-2 5800 0.02 1.0 +1.0 0 3150
