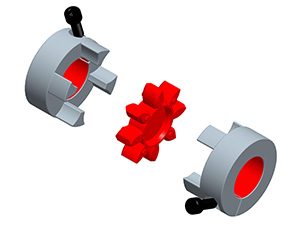

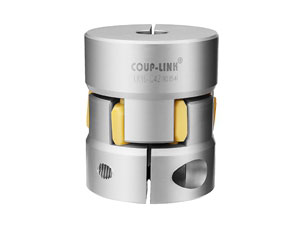

LK16-2 Jaw Coupling - Clamp Type

  • LK16-2 Jaw Coupling - Clamp Type
  • LK16-2 Jaw Coupling - Clamp Type
LK16-2 Jaw Coupling - Clamp Type

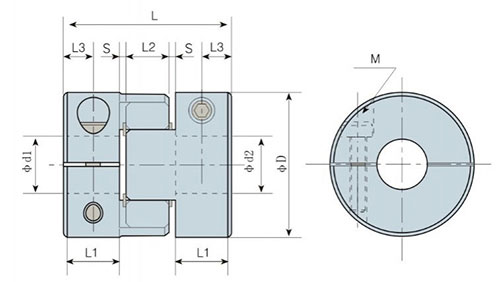

Dimensions
Note: please let us know the model and the φd1φd2 of product you need.
Model φd1φd2
Max. Bore Diameter 		φD L L1 L2 S L3 M Wrench Torque
( N.M )
LK16-C15 8 15 20 6 6 1.0 3 M2.5 0.8
LK16-C26 12.7 26 26 8 8 1.0 4 M3 1.2
LK16-C32 16 32 32 10 9 1.5 5 M4 2.5
LK16-C42 24 42 50 17 12 2.0 8.5 M5 5
LK16-C56 32 56 58 20 14 2.0 10 M6 8
LK16-C66 35 66 62 21 15 2.5 10.5 M8 20
LK16-C82 45 82 86 31 18 3.0 15.5 M8 20
LK16-C98 60 98 94 34 20 3.0 17 M10 40
LK16-C108 60 108 123 46 24 3.5 23 M10 40
Specifications
Model Rated Torque
( N.m ) 		Max.Torque
( N.m ) 		Max.Rotational Frequency
( rpm ) 		Moment of Inertia
( Kg.m2 ) 		Static Torsional Stiffness
( N.m / rad ) 		Errors of Eccentricity
( mm ) 		Max. Angular Misalignment
( °) 		Max. Axial Misalignment
( mm ) 		Mass ( g )
LK16-C15 1.1 2.2 19000 3.9×10-4 45 0.02 1.0 +0.60 0 9.5
LK16-C26 6.0 12 16000 6.8×10-4 56 0.02 1.0 +0.60 0 32.4
LK16-C32 6.5 13 12000 8.3×10-4 70 0.02 1.0 +0.60 0 51
LK16-C42 32 64 10000 9.3×10-4 490 0.02 1.0 +0.80 0 123
LK16-C56 46 92 8000 3.8×10-3 1310 0.02 1.0 +0.80 0 305
LK16-C66 109 218 6000 7.2×10-3 2240 0.02 1.0 +0.80 0 555
LK16-C82 135 270 4600 1.5×10-2 3400 0.02 1.0 +1.00 0 1018
LK16-C98 260 520 3800 1.95×10-2 4410 0.02 1.0 +1.00 0 1604
LK16-C108 430 860 3400 3.0×10-2 5700 0.02 1.0 +1.00 0 2850

For more information, please click here.
