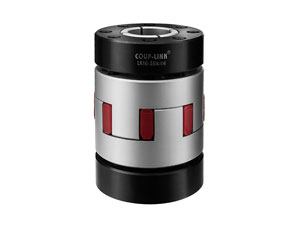

- LK10 Jaw Coupling - Locking Assemblies Coupling
LK10 Jaw Coupling - Locking Assemblies Coupling

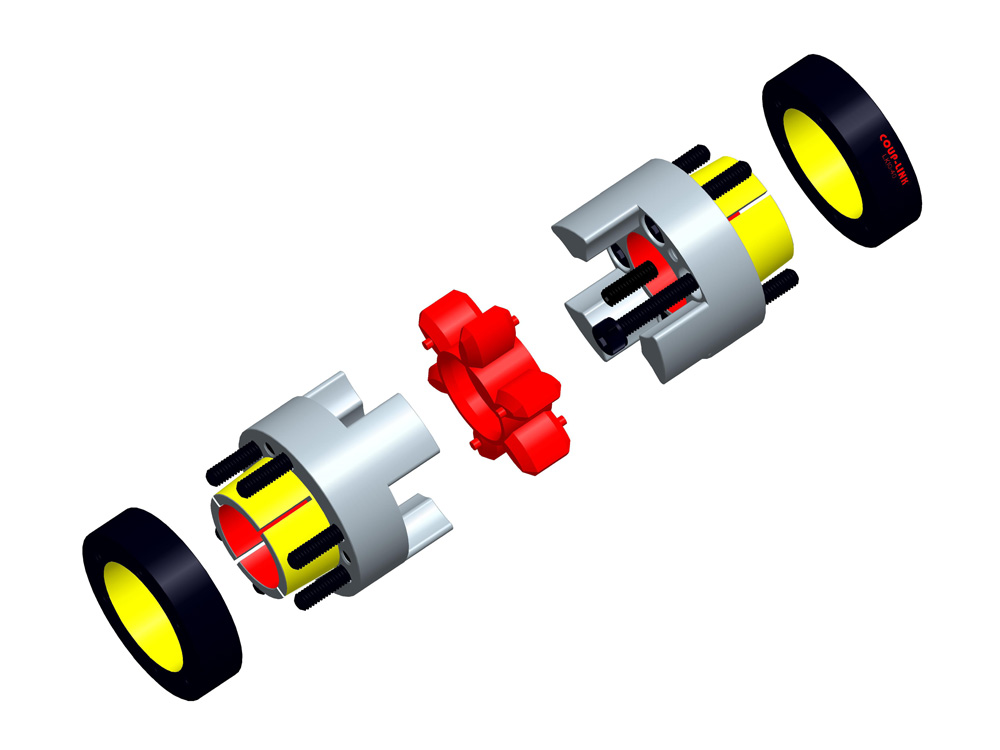

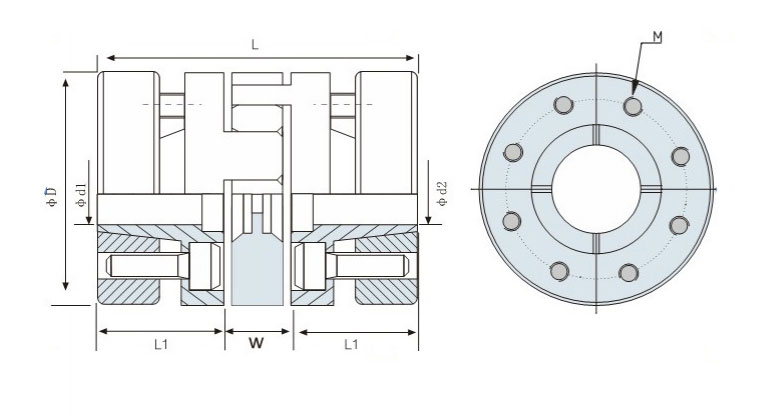

Note: please let us know the model and the φd1φd2 of product you need.

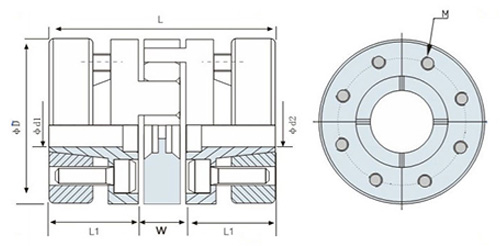

| Model | φd1φd2 Max. Bore Diameter |
φD | L | L1 | W | M | Wrench Torque ( N.M ) |
| LK10-30 | 14 | 30 | 50 | 18.5 | 13 | M3(4) | 1.3 |
| LK10-40 | 20 | 40 | 66 | 25 | 16 | M4(6) | 2.7 |
| LK10-55 | 28 | 55 | 78 | 30 | 18 | M5(8) | 6.0 |
| LK10-65 | 38 | 65 | 90 | 35 | 20 | M5(8) | 6.0 |
| LK10-80 | 45 | 80 | 114 | 45 | 24 | M6(8) | 10.0 |
| LK10-95 | 50 | 95 | 126 | 50 | 26 | M8(8) | 35 |
| LK10-105 | 60 | 105 | 140 | 56 | 28 | M8(8) | 35 |
| LK10-120 | 65 | 120 | 160 | 65 | 30 | M10(8) | 40 |
| LK10-135 | 70 | 135 | 185 | 75 | 35 | M12(8) | 40 |
| Model | Rated Torque ( N.m ) |
Max. Torque ( N.m ) |
Max.Rotational Frequency(rpm) |
Moment of Inertia ( Kg.m2 ) |
Static Torsional Stiffness ( N.m / rad ) |
Errors of Eccentricity ( mm ) |
Max. Angular Misalignment ( °) |
Max. Axial Misalignment ( mm ) |
Mass ( g ) |
| LK10-30 | 7.4 | 14.8 | 20000 | 8.7×10-4 | 510 | 0.02 | 1 | ±0.6 0 | 107 |
| LK10-40 | 9.5 | 19.0 | 15000 | 1.12×10-3 | 550 | 0.02 | 1 | ±0.8 0 | 239 |
| LK10-55 | 34 | 68 | 13000 | 4.5×10-3 | 1510 | 0.02 | 1 | ±0.8 0 | 545 |
| LK10-65 | 95 | 190 | 10500 | 9.1×10-3 | 2800 | 0.02 | 1 | ±0.8 | 717 |
| LK10-80 | 135 | 270 | 8600 | 1.9×10-2 | 3600 | 0.02 | 1 | ±1.0 0 | 1657 |
| LK10-95 | 230 | 460 | 7500 | 2.2×10-2 | 4700 | 0.02 | 1 | ±1.0 0 | 2840 |
| LK10-105 | 380 | 760 | 6000 | 3.3×10-2 | 5800 | 0.02 | 1 | ±1.0 0 | 3868 |
| LK10-120 | 540 | 1080 | 5500 | 1.03×10-1 | 7200 | 0.02 | 1 | ±1.0 0 | 4650 |
| LK10-135 | 610 | 1320 | 5000 | 1.9×10-1 | 8700 | 0.02 | 1 | ±1.0 0 | 6720 |
For more information, please click here.
