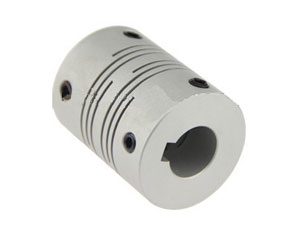

LK7-3 Slit Coupling - Beam Type -Keyway Type - Parallel
Note: the model with S is the stainless steel type, and the model without S is aluminium alloy type
please let us know the model and the φd1φd2 of product you need.

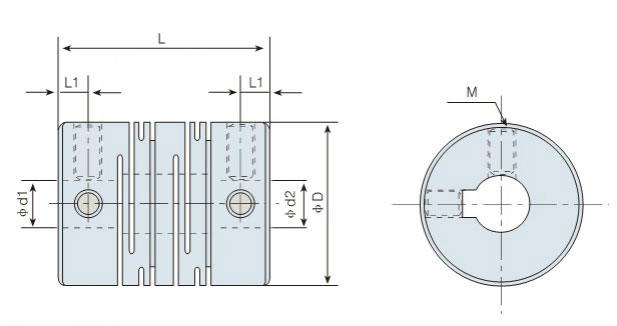

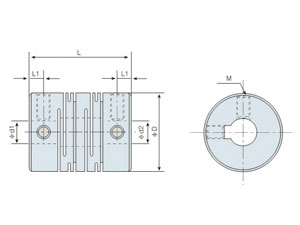

| Model | φd1φd2 Max. Bore Diameter | φD | L | L1 | M | Wrench Torque ( N.M ) |
| LK7-32K SLK7-32K | 14 | 32 | 41 | 6 | M4 | 2.5 |
| LK7-40K SLK7-40K | 18 | 40 | 56 | 8.5 | M5 | 5 |
| LK7-50K SLK7-50K | 20 | 50 | 71 | 10.5 | M6 | 8 |
| LK7-63K SLK7-63K | 30 | 63 | 90 | 13 | M8 | 20 |
| Model | Rated Torque ( N.m ) | Max.Torque ( N.m ) | Max.Rotational Frequency ( rpm ) | Moment of Inertia ( Kg.m2 ) | Static Torsional Stiffness ( N.m / rad ) | Errors of Eccentricity ( mm ) | Max. Angular ( °) | Max. Axial Misalignment ( mm ) | Mass ( g ) |
| LK7-32K | 2.8 | 5.6 | 4600 | 9.5×10-6 | 270 | 0.15 | 1.5 | ±0.3 | 67.5 |
| LK7-40K | 6.3 | 12.6 | 3600 | 3.1×10-5 | 330 | 0.15 | 1.5 | ±0.3 | 170 |
| LK7-50K | 11 | 22 | 3000 | 9.0×10-5 | 570 | 0.2 | 1.5 | ±0.3 | 315 |
| LK7-63K | 22 | 44 | 2200 | 3.0×10-4 | 820 | 0.2 | 1.5 | ±0.3 | 632 |
| SLK7-32K | 5.5 | 11 | 4600 | 2.5×10-5 | 830 | 0.15 | 1.5 | ±0.3 | 164 |
| SLK7-40K | 8.7 | 17.4 | 3600 | 8.3×10-5 | 980 | 0.15 | 1.5 | ±0.3 | 350 |
| SLK7-50K | 16 | 32 | 3000 | 2.6×10-4 | 1380 | 0.2 | 1.5 | ±0.3 | 740 |
| SLK7-63K | 38 | 76 | 2200 | 8.2×10-4 | 1790 | 0.2 | 1.5 | ±0.3 | 1320 |
For more information, please click here.
