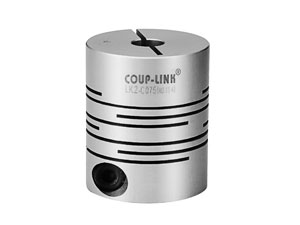

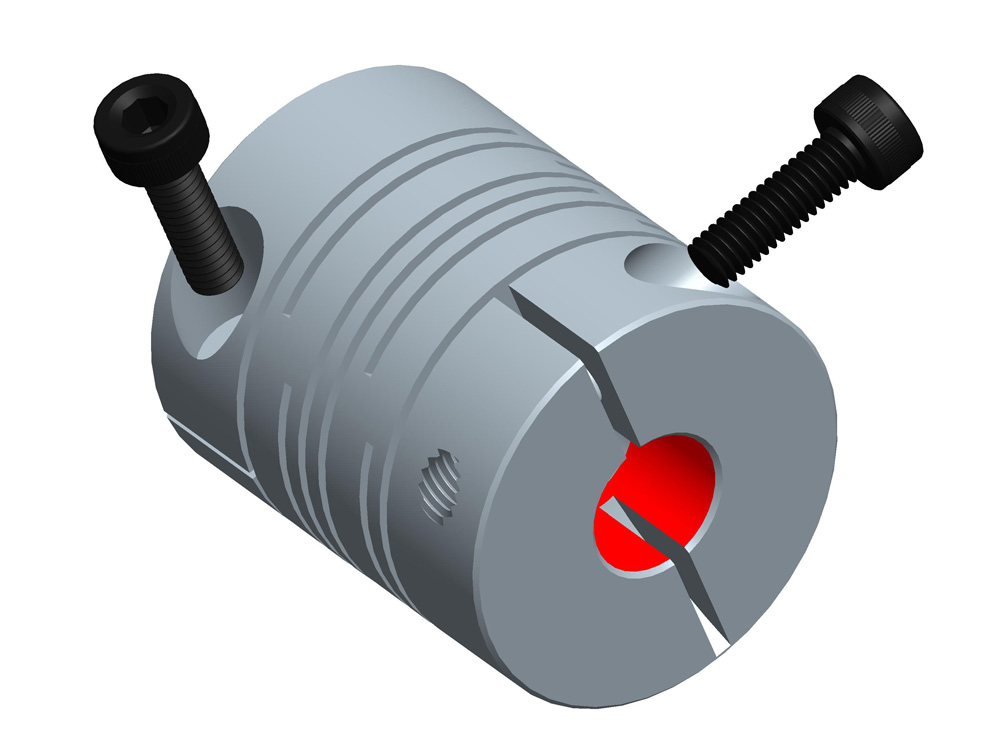

LK2-3 Flexible Couplings - Beam Type - Clamp Type - Parallel
Note: the model with S is the stainless steel type, and the model without S is aluminium alloy type
please let us know the model and the φd1φd2 of product you need.

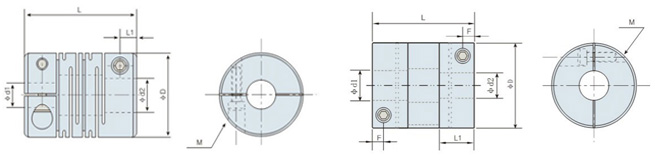

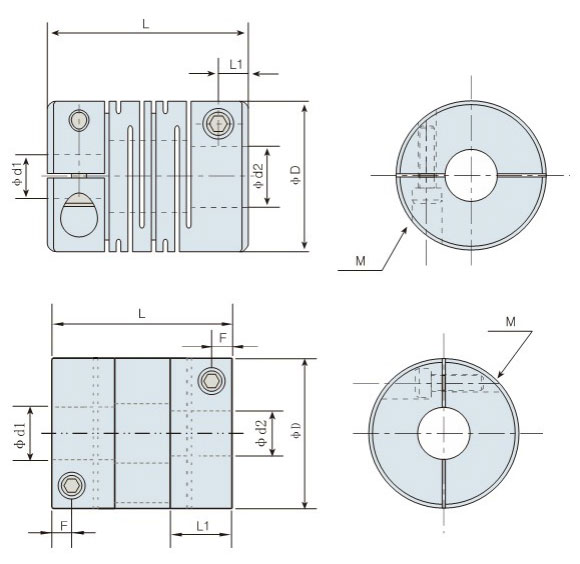

| Model | φd1φd2 Max. Bore Diameter | φD | L | L1 | M | Wrench Torque ( N.M ) |
| LK2-C075 SLK2-C075 | 6.35 | 19.1 | 22.9 | 3.10 | M2.5 | 0.8 |
| LK2-C100 SLK2-C100 | 10 | 25.4 | 31.8 | 4.15 | M3 | 1.2 |
| LK2-C112 SLK2-C112 | 12.7 | 28.6 | 38.1 | 5.00 | M4 | 2.5 |
| LK2-C150 SLK2-C150 | 15 | 38.1 | 41.3 | 5.90 | M5 | 5 |
| LK2-C200 SLK2-C200 | 19 | 50.8 | 51.0 | 6.70 | M6 | 8 |
| Model | Rated Torque ( N.m ) | Max.
Torque ( N.m ) | Max.
Rotational
Frequency ( rpm ) | Moment of Inertia ( Kg.m2 ) | Static Torsional Stiffness ( N.m / rad ) | Errors of Eccentricity ( mm ) | Max. Angular ( °) | Max. Axial Misalignment ( mm ) | Mass ( g ) |
| LK2-C075 | 0.5 | 1.0 | 8000 | 9.0×10-7 | 110 | 0.1 | 1.5 | ±0.15 | 13 |
| LK2-C100 | 1.4 | 2.8 | 6000 | 2.5×10-6 | 170 | 0.1 | 1.5 | ±0.15 | 32 |
| LK2-C112 | 1.6 | 3.2 | 5000 | 8.8×10-6 | 260 | 0.1 | 1.5 | ±0.15 | 47 |
| LK2-C150 | 4.2 | 8.4 | 4500 | 3.0×10-5 | 330 | 0.1 | 1.5 | ±0.15 | 94 |
| LK2-C200 | 9.0 | 18.0 | 4500 | 9.6×10-5 | 560 | 0.1 | 1.5 | ±0.15 | 233 |
| SLK2-C075 | 1.0 | 2.0 | 8000 | 2.3×10-6 | 230 | 0.1 | 1.5 | ±0.15 | 40 |
| SLK2-C100 | 2.2 | 4.4 | 6000 | 7.2×10-6 | 320 | 0.1 | 1.5 | ±0.15 | 90 |
| SLK2-C112 | 3.1 | 6.2 | 5000 | 2.4×10-5 | 790 | 0.1 | 1.5 | ±0.15 | 128 |
| SLK2-C150 | 7.5 | 15.0 | 4500 | 8.4×10-5 | 980 | 0.1 | 1.5 | ±0.15 | 256 |
| SLK2-C200 | 14.0 | 28.0 | 4500 | 2.8×10-4 | 1450 | 0.1 | 1.5 | ±0.15 | 380 |
For more information, please click here.
