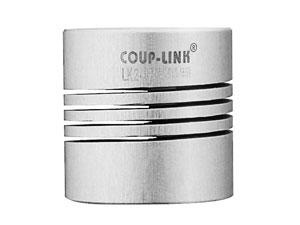

  5. LK2-2 Flexible Couplings - Beam Type - Setscrew Type - Spiral

LK2-2 Flexible Couplings - Beam Type - Setscrew Type - Spiral

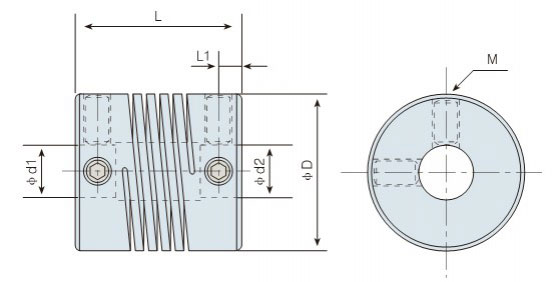

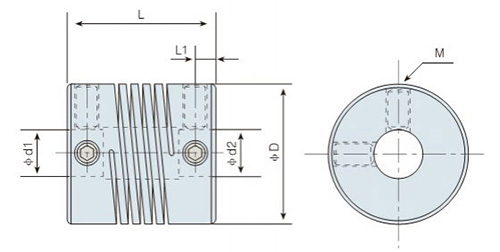

Dimensions
Note: the model with S is the stainless steel type, and the model without S is aluminium alloy type
please let us know the model and the φd1φd2 of product you need.
Model φd1φd2
Max. Bore Diameter 		φD L L1 M Wrench Torque
( N.M )
LK2-075-M
SLK2-075-M 		6.35 19.1 19.1 2.55 M3 1.2
LK2-100-M
SLK2-100-M 		10 25.4 25.4 3.55 M4 2.5
LK2-112-M
SLK2-112-M 		12.7 28.6 28.6 3.60 M5 5
LK2-150-M
SLK2-150-M 		15 38.1 38.1 4.15 M5 5
LK2-200-M
SLK2-200-M 		19 50.8 50.8 5.25 M6 8
Specifications
Model Rated Torque
( N.m ) 		Max. Torque
( N.m ) 		Max. Rotational Frequency
( rpm ) 		Moment of Inertia
( Kg.m2 ) 		Static Torsional Stiffness
( N.m / rad ) 		Errors of Eccentricity
( mm ) 		Max. Angular
( °) 		Max. Axial Misalignment
( mm ) 		Mass ( g )
LK2-075-M 0.5 1.0 10000 6.9.×10-7 110 0.1 2.0 ±0.15 15
LK2-100-M 1.4 2.8 10000 2.8.×10-6 170 0.1 2.0 ±0.15 29
LK2-112-M 1.6 3.2 8000 5.1×10-6 260 0.1 2.0 ±0.15 44
LK2-150-M 4.2 8.4 8000 2.1×10-5 330 0.1 2.0 ±0.15 99
LK2-200-M 9.0 18.0 6000 9.0×10-5 560 0.1 2.0 ±0.15 223
SLK2-075-M 1.0 2.0 10000 2.2×10-6 230 0.1 2.0 ±0.15 36
SLK2-100-M 2.2 4.4 10000 7.0×10-6 320 0.1 2.0 ±0.15 76
SLK2-112-M 3.1 6.2 8000 2.3×10-5 790 0.1 2.0 ±0.15 120
SLK2-150-M 7.5 15.0 8000 8.3×10-5 980 0.1 2.0 ±0.15 214
SLK2-200-M 14.0 28.0 6000 2.7×10-4 1450 0.1 2.0 ±0.15 362
