LK6-2 Bellows Coupling - Clamp Type

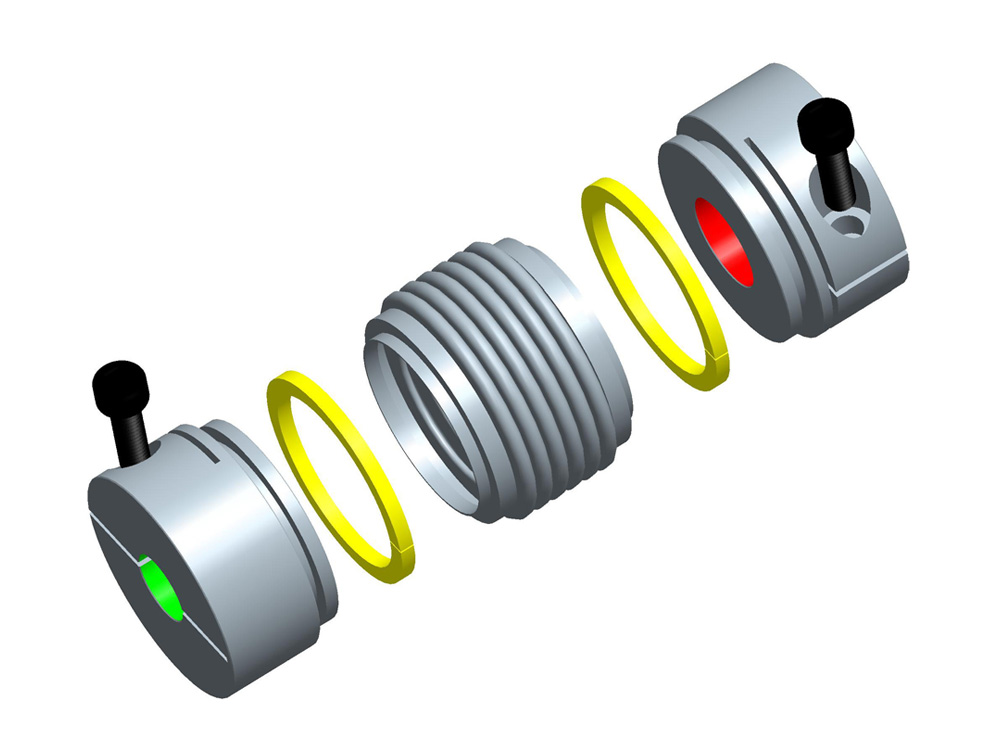

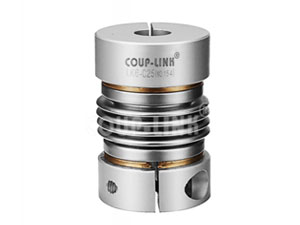

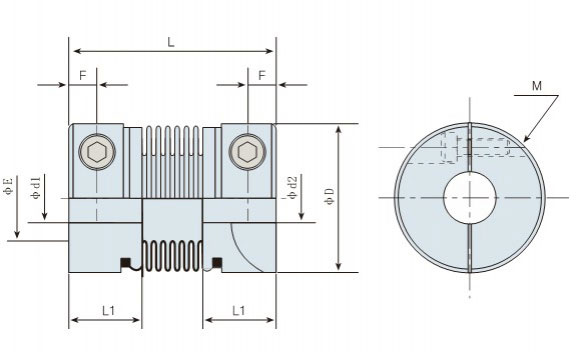

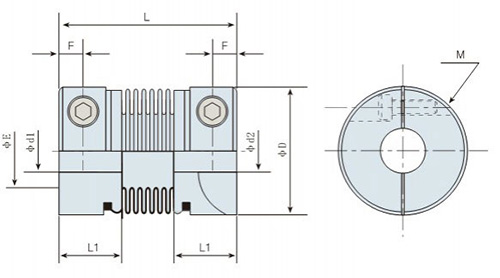

Dimensions
Note: please let us know the model and the φd1φd2 of product you need.
Model φd1φd2
Max. Bore Diameter 		φD L L1 F E M Wrench Torque
( N.M )
LK6-10 4 10 18 4.75 2.5 6.0 M2 0.4
LK6-12 6.35 12 23.5 7.5 3.0 7.0 M2.5 0.8
LK6-16 8 16 27 9.45 3.0 9.5 M3 1.2
LK6-20 12 20 29 10.4 3.0 12.5 M4 2.5
LK6-25 12 25 34 11.4 4.0 16 M4 2.5
LK6-32 14 32 38 11.65 4.0 22 M4 2.5
LK6-32L 14 32 49 11.65 4.0 22 M4 2.5
LK6-40 16 40 51 15.9 4.5 27 M5 5
LK6-55 19 55 57 15 5.0 37.5 M6 8
Specifications
Model Rated Torque
( N.m ) 		Max.Torque
( N.m ) 		Max.Rotational Frequency
( rpm ) 		Moment of Inertia
( Kg.m2 ) 		Static Torsional Stiffness
( N.m / rad ) 		Errors of Eccentricity
( mm ) 		Max. Angular
( ° ) 		Max. Axial Misalignment
( mm )		 Mass
( g )
LK6-10 0.2 0.4 28000 6.7×10-8 78 0.10 1.5 +0.3 －1.0 3.4
LK6-12 0.3 0.6 25000 8.9×10-8 81 0.10 1.5 +0.3 －1.0 4.5
LK6-16 0.8 1.6 20000 3.4×10-7 100 0.10 1.5 +0.3 －1.0 10.5
LK6-20 1.5 3.0 15000 8.9×10-7 160 0.10 1.5 +0.3 －1.0 15
LK6-25 2.0 4.0 13000 2.8×10-6 220 0.15 2.0 +0.5 －1.3 29.5
LK6-32 2.5 5.0 10000 8.8×10-6 310 0.20 2.0 +0.5 －1.3 47.5
LK6-32L 2.5 5.0 10000 8.9×10-6 310 0.20 2.0 +0.5 －1.3 58
LK6-40 1.0 20.0 8000 1.5×10-5 520 0.20 2.0 +0.7 －1.5 109
LK6-55 25.0 50.0 6000 2.3×10-5 850 0.20 2.0 +0.7 －1.5 261
