- LK14 Bellows Coupling - Locking Assemblies Coupling
LK14 Bellows Coupling - Locking Assemblies Coupling
Note: please let us know the model and the φd1φd2 of product you need.

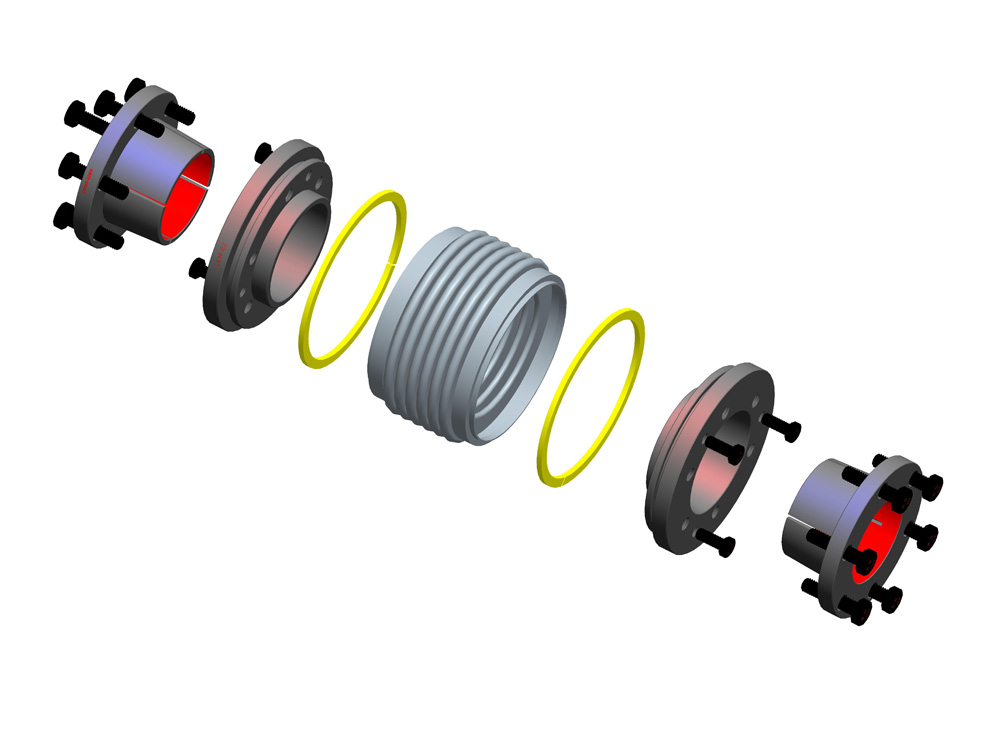

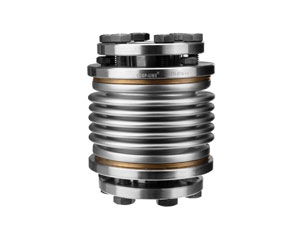

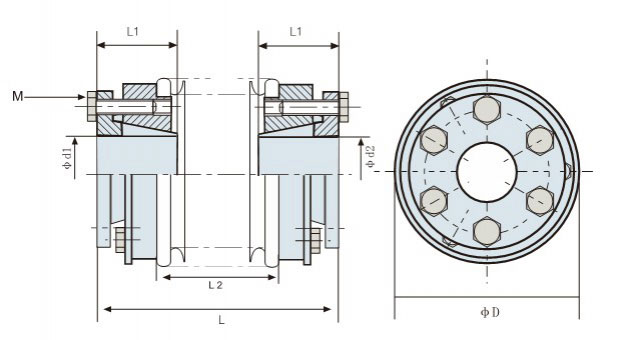

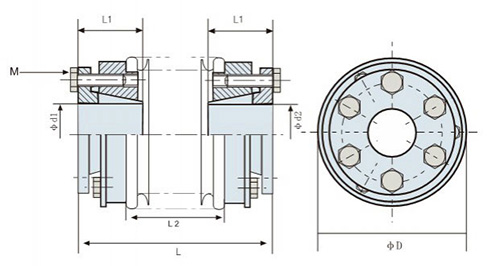

| Model | φd1φd2 Max. Bore Diameter(mm) | φD | L | L1 | L2 | M | Wrench Torque ( N.M ) |
| LK14-40 | 16 | 40 | 55 | 19 | 24 | M4 | 2.5 |
| LK14-55 | 20 | 55 | 65 | 22 | 31 | M5 | 5 |
| LK14-65 | 28 | 65 | 76 | 27 | 37 | M6 | 8 |
| LK14-82 | 38 | 82 | 88 | 32 | 41 | M6 | 8 |
| Model | Rated Torque ( N.m ) | Max.
Torque ( N.m ) | Max.
Rotational
Frequency ( rpm ) | Moment of Inertia ( Kg.m2 ) | Static Torsional Stiffness ( N.m / rad ) | Errors of Eccentricity ( mm ) | Max. Angular ( °) | Max. Axial Misalignment ( mm ) | Mass ( g ) |
| LK14-40 | 13 | 26 | 8000 | 9×10-4 | 1.5X104 | 0.15 | 2 | 1 | 231 |
| LK14-55 | 28 | 56 | 6000 | 2.9×10-4 | 3.5X104 | 0.2 | 2 | 1.5 | 485 |
| LK14-65 | 56 | 112 | 5000 | 4.6×10-4 | 6.8X104 | 0.25 | 2 | 1.5 | 787 |
| LK14-82 | 120 | 240 | 4500 | 1.1×10-5 | 1.2X105 | 0.28 | 2 | 1.5 | 1512 |
For more information, please click here.
