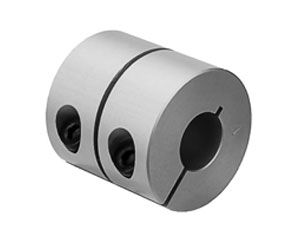

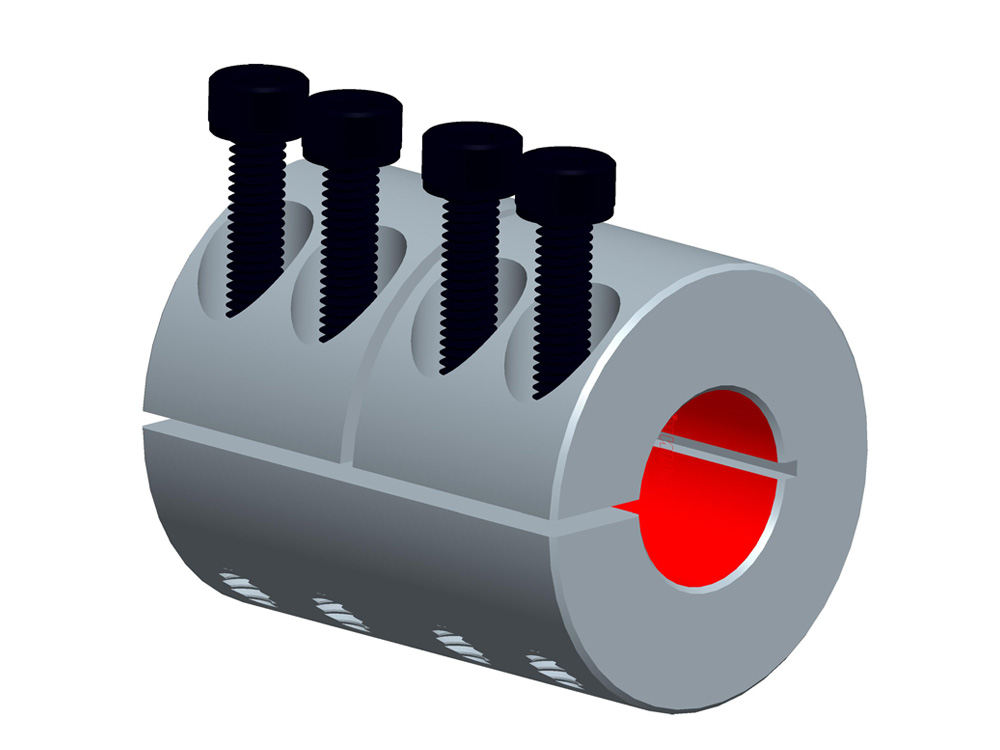

LK13-2 Rigid Coupling - Clamp Type

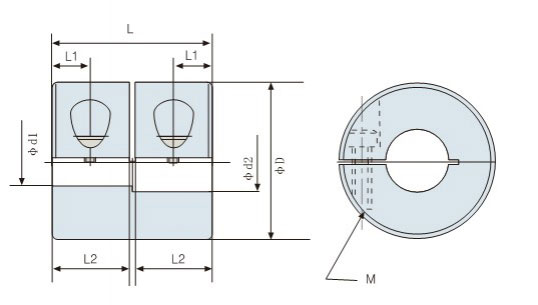

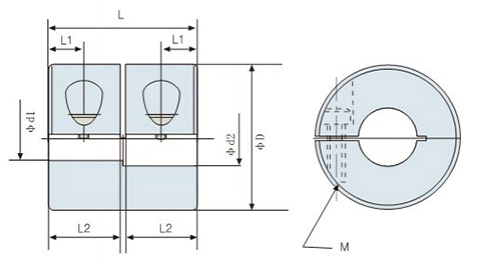

Dimensions
Note: the model with S is the stainless steel type, and the model without S is aluminium alloy type
please let us know the model and the φd1φd2 of product you need.
Model φd1φd2
Max. Bore Diameter(mm) 		φD L L1 L2 M Tightening Torque
( N.M )
LK13-C16 6 16 16 3.75 7.7 M2.5 0.8
LK13-C20 8 20 20 4.75 9.5 M2.5 0.8
LK13-C25 10 25 25 6 12 M3 1.2
LK13-C32 14 32 32 7.75 15.5 M4 2.5
LK13-C40 18 40 44 10.5 21 M5 5
LK13-C50 24 50 55 13 26 M6 8
LK13-C16L 6 16 22 3.75 10.7 M2.5 0.8
LK13-C20L 8 20 24 4.75 11.5 M2.5 0.8
LK13-C25L 10 25 36 6 17.5 M3 1.2
LK13-C32L 14 32 40 6.5 19.5 M4 2.5
LK13-C40L 18 40 52 7.0 25 M5 5
LK13-C50L 24 50 66 9.0 32 M6 8
SLK13-C16 6 16 16 3.75 7.5 M2.5 0.8
SLK13-C20 8 20 20 4.75 9.5 M2.5 0.8
SLK13-C25 10 25 25 6.0 12 M3 1.2
SLK13-C32 14 32 32 7.75 15.5 M4 2.5
SLK13-C40 18 40 44 10.5 21 M5 5
SLK13-C50 24 50 55 13 26 M6 8
SLK13-C16L 6 16 22 3.75 10.7 M2.5 0.8
SLK13-C20L 8 20 24 4.75 11.5 M2.5 0.8
SLK13-C25L 10 25 36 6.0 17.5 M3 1.2
SLK13-C32L 14 32 40 6.5 19.5 M4 2.5
SLK13-C40L 18 40 52 7.0 25 M5 5
SLK13-C50L 24 50 66 9.0 32 M6 8
Specifications
Model Rated Torque
( N.m ) 		Max.Torque
( N.m ) 		Max.Rotational Frequency
( rpm ) 		Moment of Inertia
( Kg.m2 ) 		Mass ( g )
LK13-C16 0.3 0.6 9300 2.9×10-7 7
LK13-C20 0.5 1 7400 8.6×10-7 16
LK13-C25 1 2 6000 2.6×10-6 29
LK13-C32 2 4 4600 7.0×10-6 54.5
LK13-C40 4 8 4000 1.5×10-5 123
LK13-C50 6 12 3800 7.0×10-5 246
LK13-C16L 0.3 0.6 9300 3.3×10-7 10
LK13-C20L 0.5 1 7400 9.1×10-7 18
LK13-C25L 1 2 6000 3.3×10-6 38
LK13-C32L 2 4 4600 9.0×10-6 70
LK13-C40L 4 8 3800 3.7×10-5 160
LK13-C50L 6 12 2800 8.8×10-5 285
SLK13-C16 0.45 0.9 9300 7.9×10-7 21
SLK13-C20 0.75 1.5 7400 2.3×10-6 40
SLK13-C25 1.5 3 6000 7.2×10-6 79
SLK13-C32 3 6 4600 2.4×10-5 158
SLK13-C40 6 12 4000 3.75×10-5 310
SLK13-C50 9 18 3800 1.75×10-4 615
SLK13-C16L 0.45 0.9 9300 9.0×10-7 25
SLK13-C20L 0.75 1.5 7400 2.5×10-6 45
SLK13-C25L 1.5 3 6000 9.1×10-6 100
SLK13-C32L 3 6 4600 1.3×10-5 180
SLK13-C40L 6 12 3800 9.3×10-5 355
SLK13-C50L 9 18 2800 2.2×10-4 670
