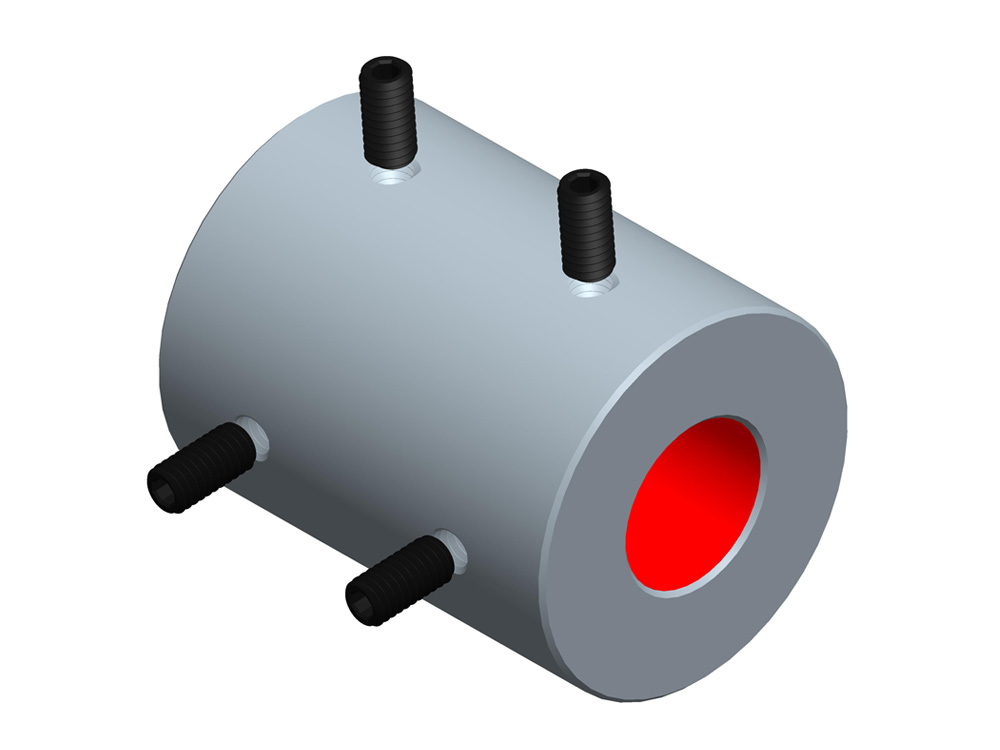

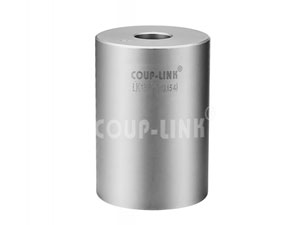

LK13-1 Rigid Coupling - Setscrew Type
Note: the model with S is the stainless steel type, and the model without S is aluminium alloy type
please let us know the model and the φd1φd2 of product you need.

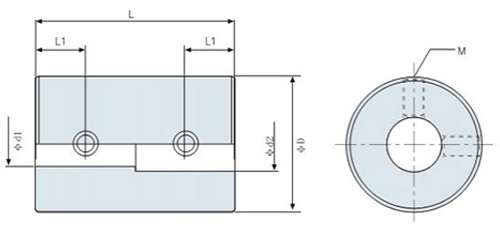

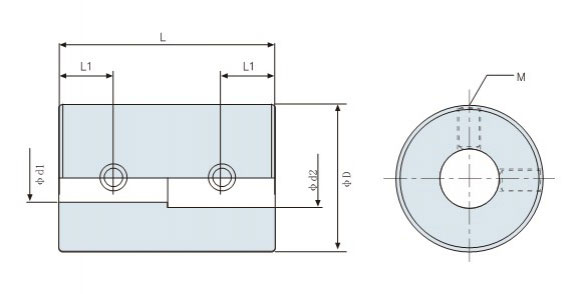

| Model | φd1φd2 Max. Bore Diameter | φD | L | L1 | M | Wrench Torque ( N.M ) |
| LK13-16 | 6 | 16 | 24 | 6 | M3 | 1.2 |
| LK13-20 | 10 | 20 | 30 | 7 | M3 | 1.2 |
| LK13-25 | 12 | 25 | 36 | 9 | M4 | 2.5 |
| LK13-32 | 16 | 32 | 41 | 10 | M4 | 2.5 |
| LK13-40 | 20 | 40 | 44 | 10.5 | M5 | 5 |
| SLK13-16 | 6 | 16 | 24 | 6 | M3 | 1.2 |
| SLK13-20 | 10 | 20 | 30 | 7 | M3 | 1.2 |
| SLK13-25 | 12 | 25 | 36 | 9 | M4 | 2.5 |
| SLK13-32 | 16 | 32 | 41 | 10 | M4 | 2.5 |
| SLK13-40 | 20 | 40 | 44 | 10.5 | M5 | 5 |
| Model | Rated Torque ( N.m ) | Max.Torque ( N.m ) | Max.Rotational Frequency ( rpm ) | Moment of Inertia ( Kg.m2 ) | Mass ( g ) |
| LK13-16 | 0.3 | 0.6 | 23000 | 3.1X10-7 | 13 |
| LK13-20 | 0.5 | 1 | 18000 | 8.5X10-7 | 24.5 |
| LK13-25 | 1.0 | 2 | 14000 | 2.6X10-6 | 43 |
| LK13-32 | 2.0 | 4 | 10000 | 9.1X10-6 | 55 |
| LK13-40 | 4 | 8 | 8000 | 1.5X10-5 | 120 |
| SLK13-16 | 0.45 | 0.9 | 23000 | 8.1X10-7 | 28 |
| SLK13-20 | 0.75 | 1.5 | 18000 | 2.2X10-6 | 54 |
| SLK13-25 | 1.5 | 3.0 | 14000 | 7.1X10-6 | 100 |
| SLK13-32 | 3.0 | 6.0 | 10000 | 2.4X10-5 | 190 |
| SLK13-40 | 6.0 | 12.0 | 8000 | 3.75X10-5 | 240 |
