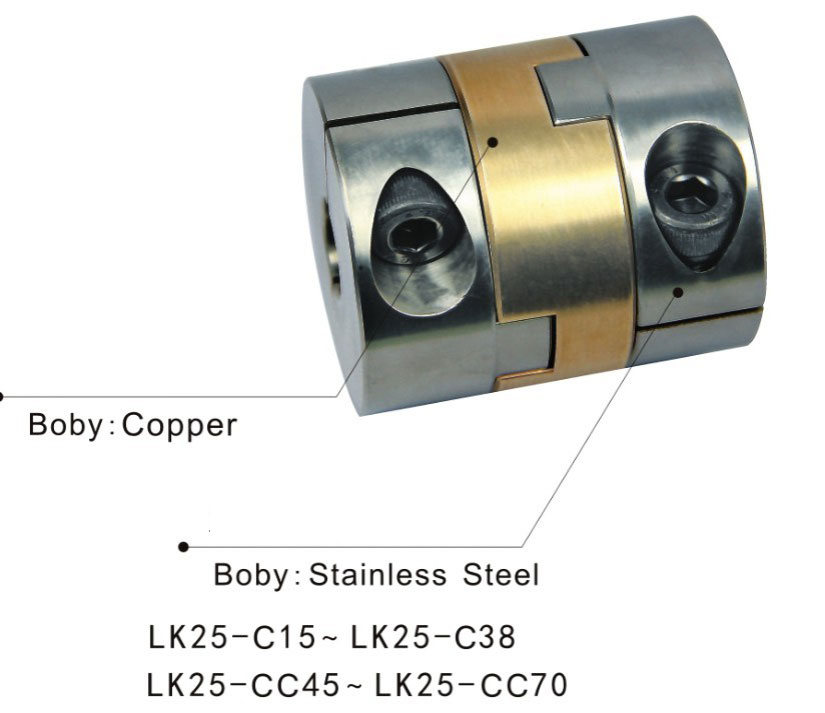

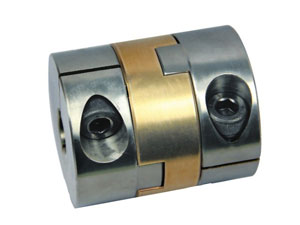

LK25-2 Oldham Coupling - Clamp Type

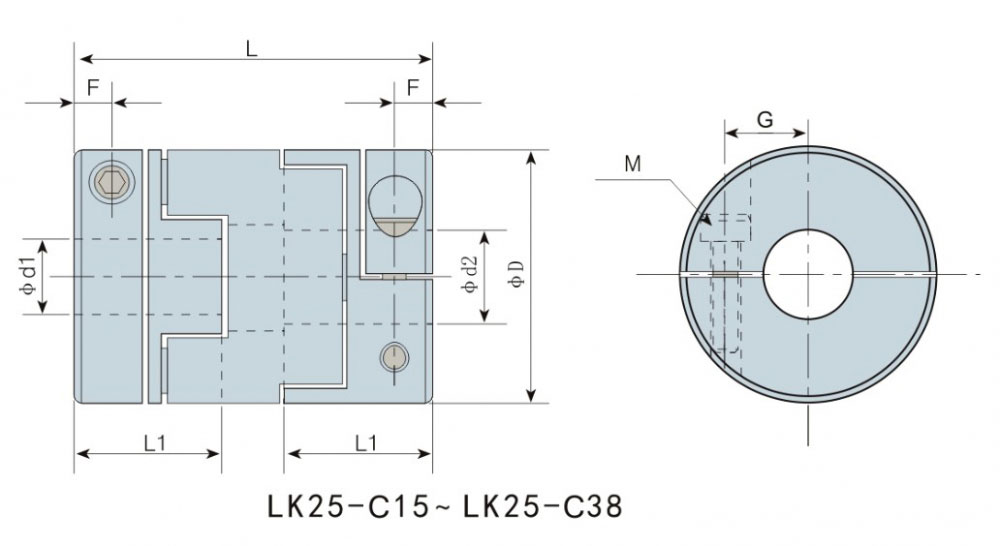

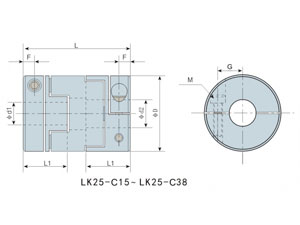

Dimensions
Note: please let us know the model and the φd1φd2 of product you need.
Model φd1φd2
Max. Bore Diameter 		φD L F L1 G M Wrench Torque
( N.M )
LK25-C15 6 15 19 2.15 6.6 5.2 M1.6 0.25
LK25-C17 6.35 17 25 2.65 9.0 5.5 M2 0.5
LK25-C20 10 20 28 3.25 10 7.25 M2.5 1.0
LK25-C26 12 26 32 4.0 11.5 9.0 M3 1.5
LK25-C30 14 30 34 4.0 12 11 M3 1.5
LK25-C34 16 34 35 4.5 13 12 M4 3.5
LK25-C38 20 38 41 4.75 15 14 M4 3.5
LK25-CC45 22 45 48 6.2 16.5 16 M5 8.0
LK25-CC55 25 55 59 8.0 21 20 M6 13
LK25-CC70 35 70 69 9.0 25 26 M6 13
Specifications
Model Rated Torque
( N.m ) 		Max.Torque
( N.m ) 		Max.Rotational
Frequency ( rpm ) 		Moment of Inertia
( Kg.m2 ) 		Static Torsional Stiffness
( N.m / rad ) 		Max. Angular Misalignment
( °) 		Errors of Shaft
End-play ( mm ) 		Mass ( g )
LK25-C15 3.3 6.6 8000 4.9×10-7 950 0.3 2 20
LK25-C17 5.5 11 7000 9.2×10-7 1450 0.3 2 29
LK25-C20 7.7 15.4 6000 1.8×10-6 1880 0.4 2 42
LK25-C26 11 22 5000 6.6×10-6 3400 0.5 2 90
LK25-C30 26 52 5000 1.4×10-5 4850 0.6 2 144
LK25-C34 35 70 4000 2.4×10-5 6350 0.7 2 193
LK25-C38 55 110 4000 4.5×10-5 7660 0.8 2 288
LK25-CC45 66 132 3000 1.0×10-4 17500 1.0 2 464
LK25-CC55 99 198 2000 2.6×10-4 31000 1.2 2 799
LK25-CC70 176 352 2000 7.3×10-4 47500 1.4 2 1362
