LK25-1 Oldham Coupling - Setscrew Type

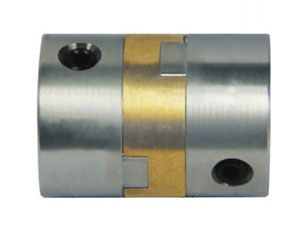

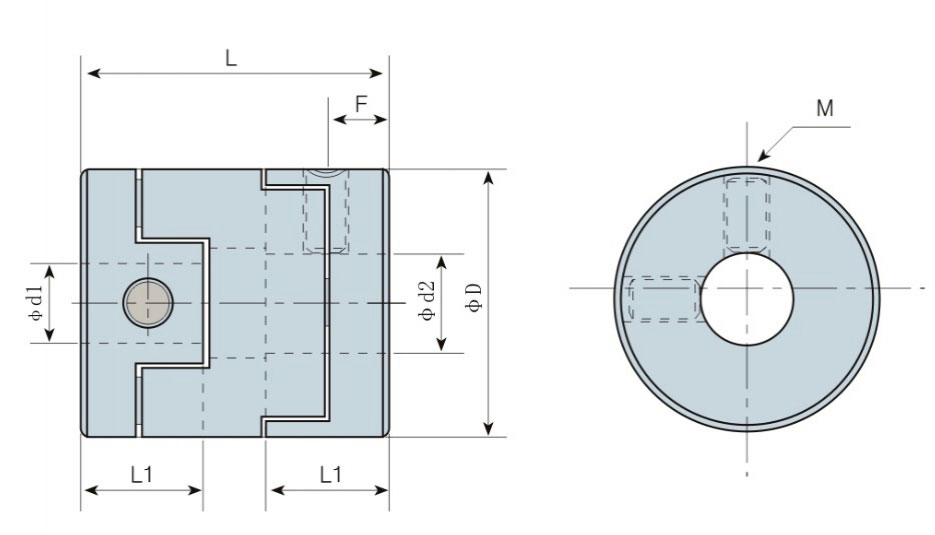

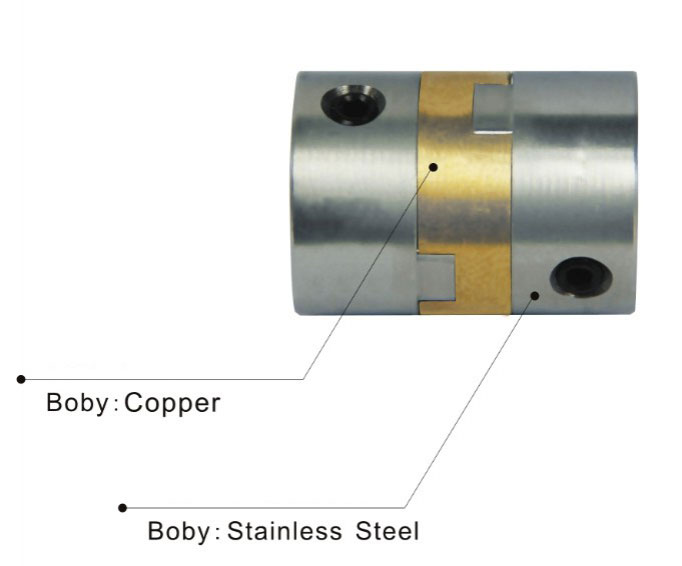

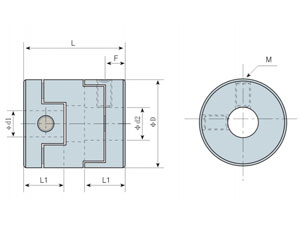

Dimensions
Note: please let us know the model and the φd1φd2 of product you need.
Model φd1φd2
Max. Bore Diameter(mm) 		φD L F L1 M Wrench Torque
( N.M )
LK25-12 6 12 15 2.6 5.2 M2.5 0.5
LK25-15 8 15 17 2.8 5.6 M3 0.7
LK25-17 10 17 21 3.5 7.0 M3 0.7
LK25-20 12 20 22 3.5 7.0 M3 0.7
LK25-26 15 26 27 4.5 9.0 M4 1.7
LK25-30 18 30 34 6.0 12 M4 1.7
LK25-34 20 34 35 6.5 13 M5 4.0
LK25-38 22 38 41 7.5 15 M5 4.0
LK25-45 25 45 45 7.5 15 M5 4.0
LK25-55 30 55 51 8.5 17 M6 7.0
LK25-70 42 70 59 10 20 M8 15
Specifications
Model Rated Torque
( N.m ) 		Max. Torque
( N.m ) 		Max. Rotational Frequency
( rpm ) 		Moment of Inertia
( Kg.m2 ) 		Static Torsional Stiffness
( N.m / rad ) 		Max. Angular Misalignment
( °) 		Max. Axial Misalignment
( mm ) 		Mass ( g )
LK25-12 2.7 5.4 10000 1.9×10-7 480 0.3 2 13
LK25-15 3.3 6.6 8000 4.9×10-7 950 0.3 2 21
LK25-17 5.5 11 7000 9.2×10-7 1450 0.3 2 31
LK25-20 7.7 15.4 6000 1.8×10-6 1880 0.4 2 44
LK25-26 11 22 5000 6.6×10-6 3400 0.5 2 94
LK25-30 26 52 5000 1.4×10-5 4850 0.6 2 150
LK25-34 35 70 4000 2.4×10-5 6350 0.7 2 202
LK25-38 55 110 4000 4.5×10-5 7660 0.8 2 300
LK25-45 66 132 3000 1.0×10-4 17500 1.0 2 485
LK25-55 99 198 2000 2.6×10-4 31000 1.2 2 834
LK25-70 176 352 2000 7.3×10-4 47500 1.4 2 1421
